| 产品型号 | 频率 (MHz) |
工作温度范围 (°C) |
封装尺寸 长 x 宽 x 高 (mm) |
规格书 | 产品图片 |

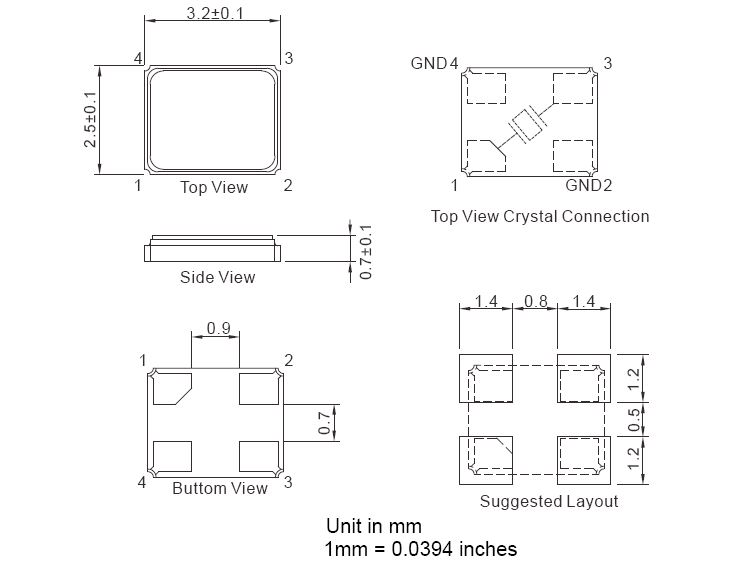

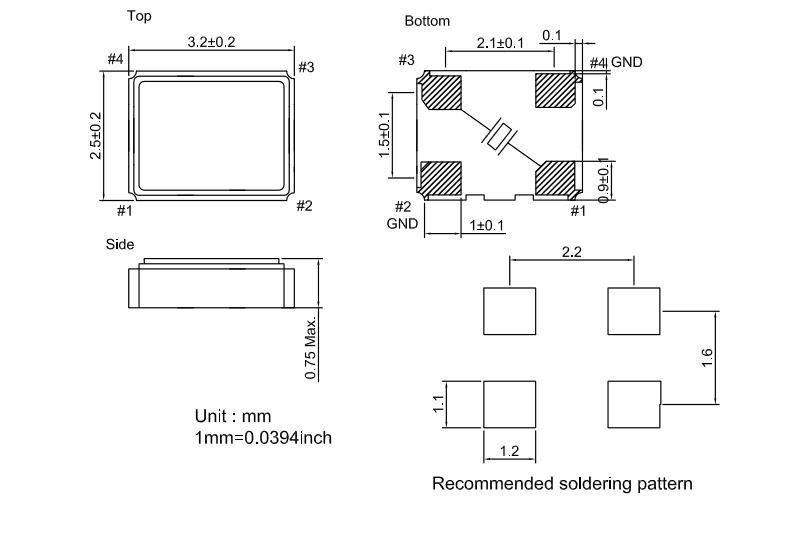

| XTAL3225S | 16, 24, 26, 27, 32, 40 | -40 to +125 | 3.2 x 2.5 x 0.75 |
|
|

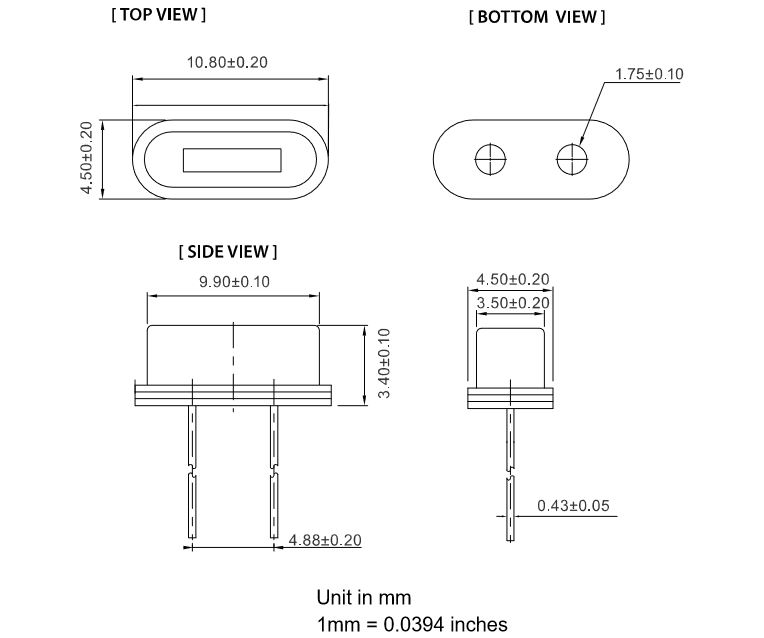

| XTAL1145S | 3.5 to 80 | -40 to +85 | 10.8 x 4.5 x3.4 |
|
|

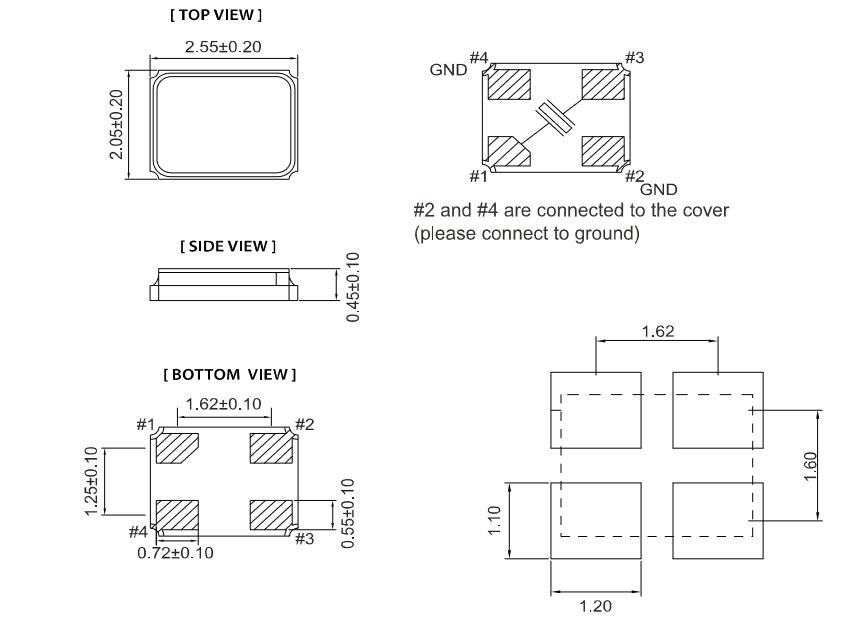

| XTAL2520S | 16, 24, 26, 40 | -40 to +85 | 2.5 x 2.0 x 0.45 |
|
|

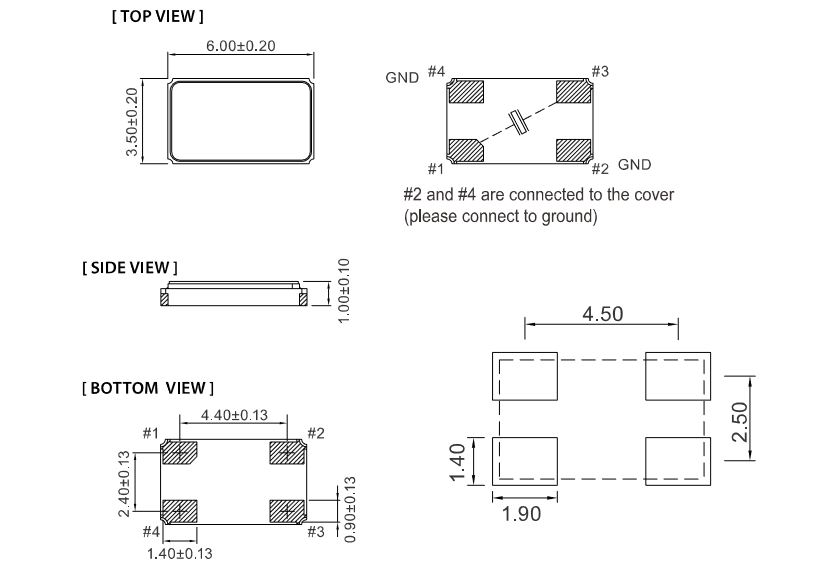

| XTAL6035S | 8 to 50 | -40 to +85 | 6.0 x 3.5 x 1.0 |
|
|

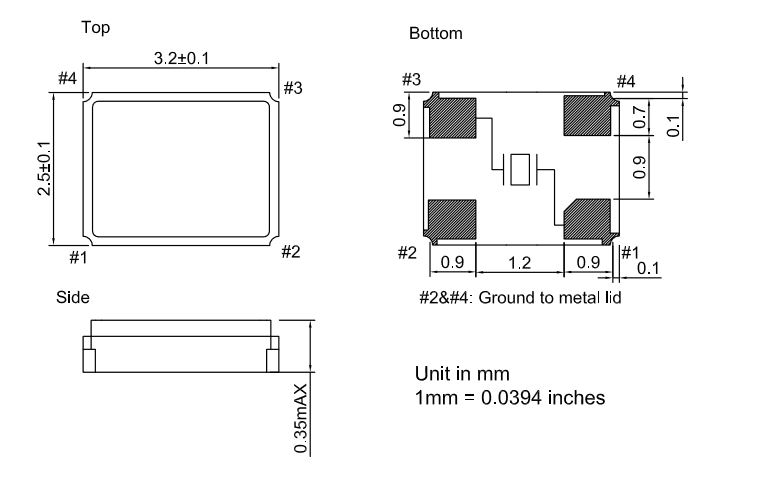

| XTAL3225AP | 16 to 50 | -20 to +70 | 3.2 x 2.5 x 0.35 |
|
|

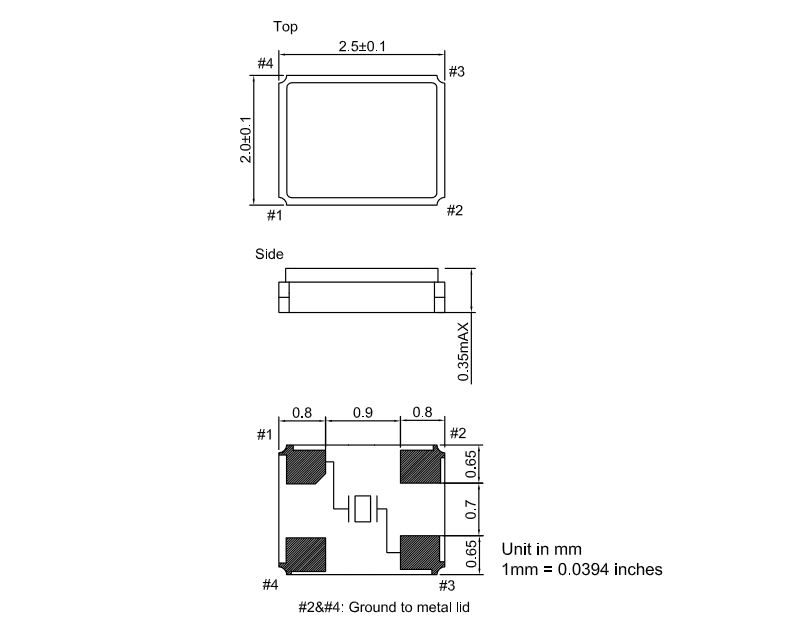

| XTAL2520AP | 24 to 90 | -20 to +70 | 2.5 x 2.0 x 0.35 |
|
|

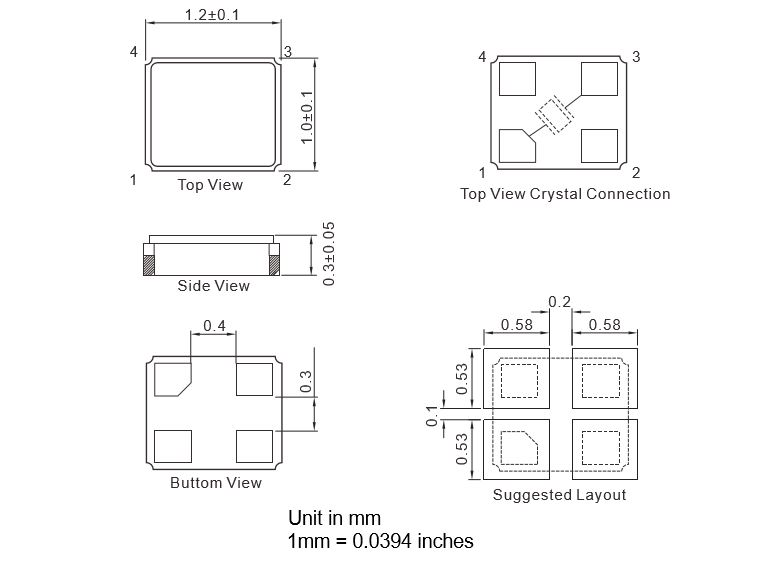

| XTAL1210AL | 36 to 54 | -20 to +70 | 1.2 x 1.0 x 0.3 |
|
|

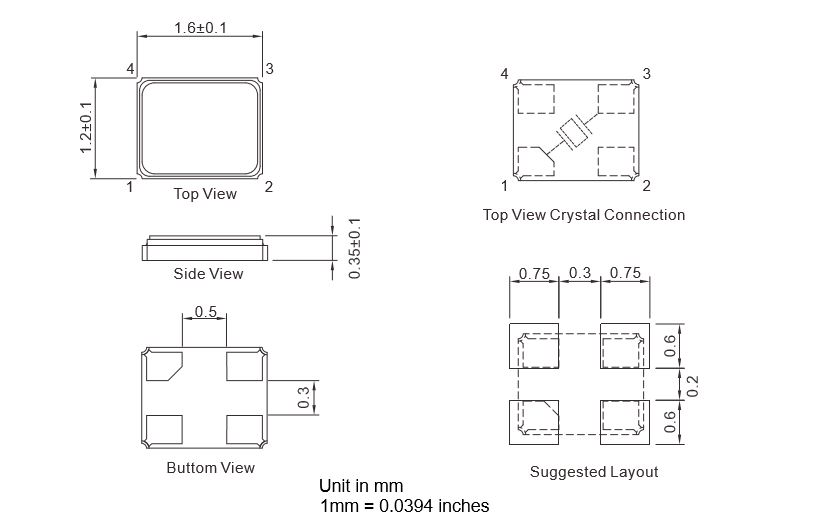

| XTAL1612AL | 24 to 54 | -20 to +70 | 1.6 x 1.2 x 0.35 |
|
|

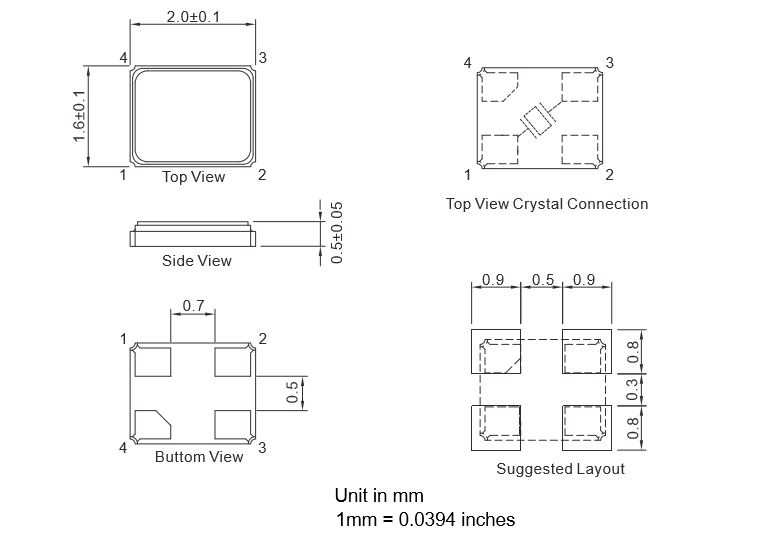

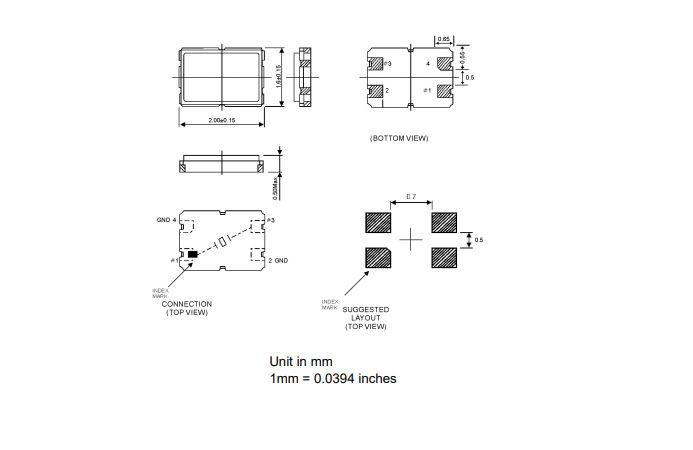

| XTAL2016AL | 16 to 54 | -20 to +70 | 2.0 x 1.6 x 0.5 |
|
|

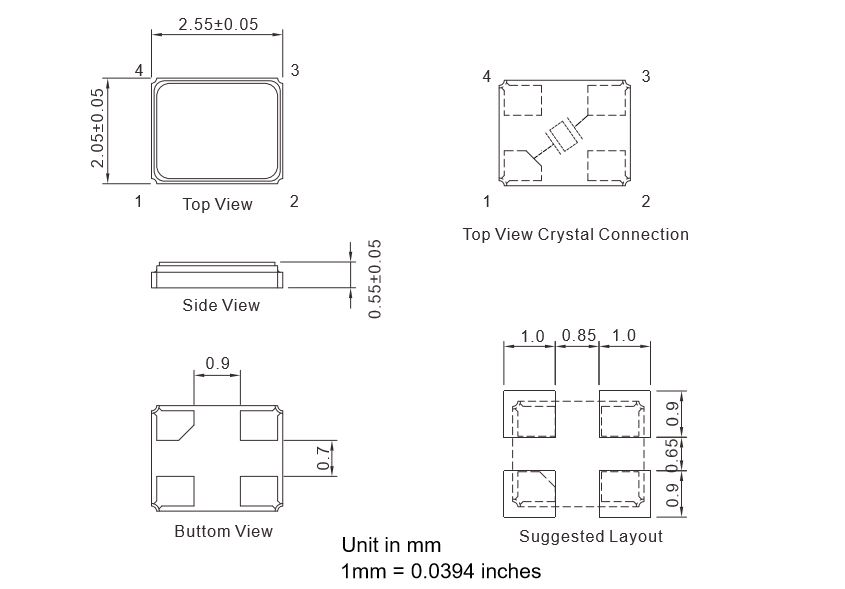

| XTAL2520AL | 12 to 54 | -20 to +70 | 2.55 x 2.05 x 0.55 |
|
|
| XTAL3225AL | 10 to 64 | -40 to +85 | 3.2 x 2.5 x 0.7 |
|
|

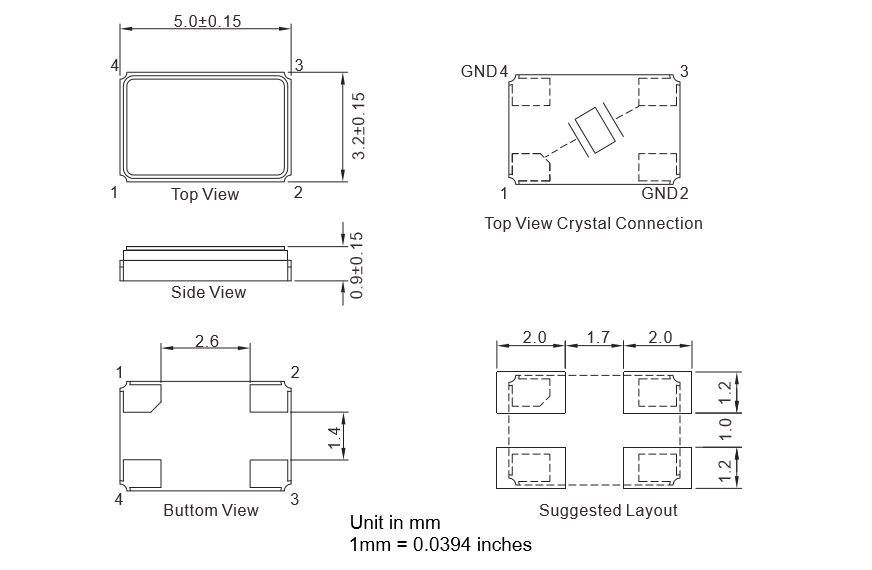

| XTAL5300AL | 8 to 125 | -40 to +85 | 5.0 x 3.2 x 0.9 |
|
|

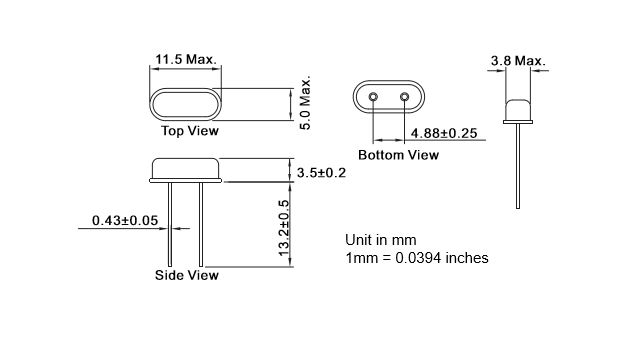

| XTAL49SAL | 3 to 100 | -20 to +70 | 11.5 x 5.0 x 3.5 |
|
|

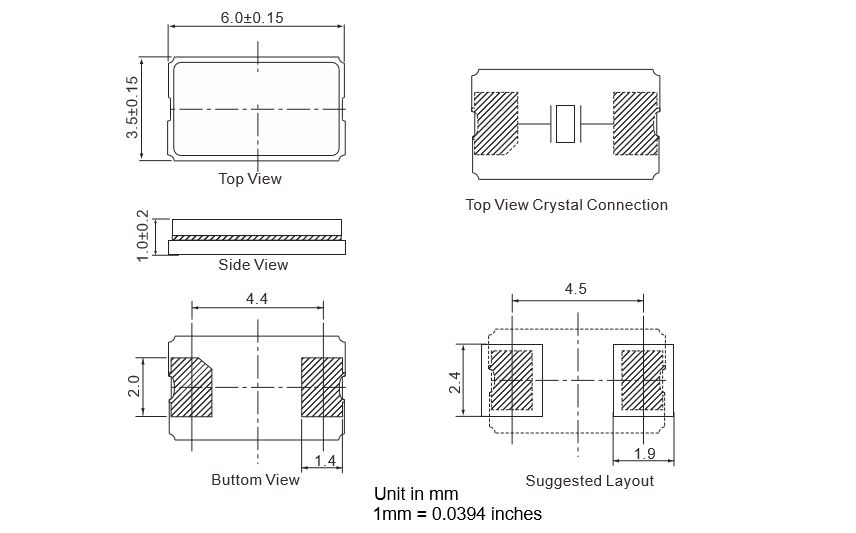

| XTAL6035AL | 8 to 100 | -40 to +85 | 6.0 x 3.5 x 1.0 |
|
|

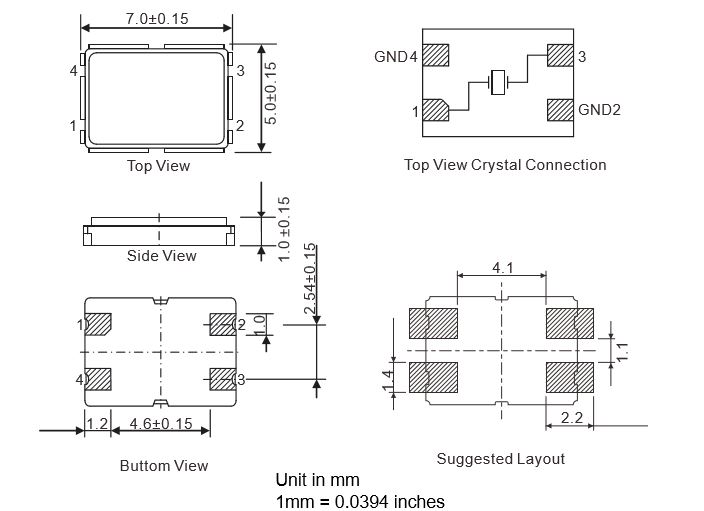

| XTAL7500AL | 6 to 160 | -40 to +85 | 7.0 x 5.0 x 1.0 |
|
|

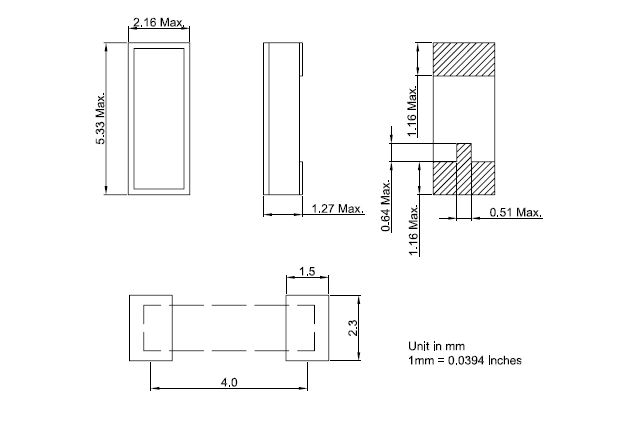

| HTXTAL5200CA-32.768KHz | 0.032678 | 0 to +175 | 5.33 x 2.16 x 1.27 |
|
|
| XTAL2016AL-32MHz-A | 32 | -20 to +70 | 2.0 x 1.6 x 0.5 |
|
|

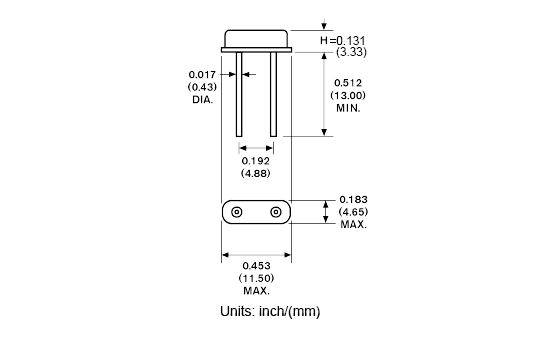

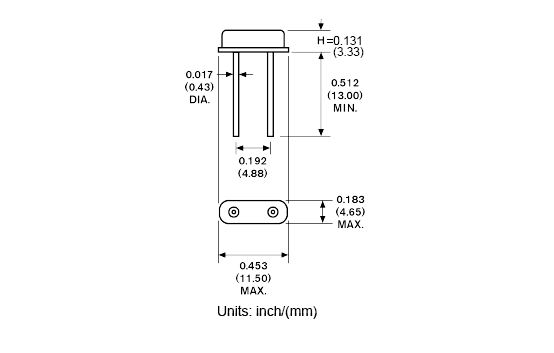

| XTAL49USBC-ET-30MHz-A | 30 | -45 to +200 | 11.5 x 4.65 x 3.33 |
|
|

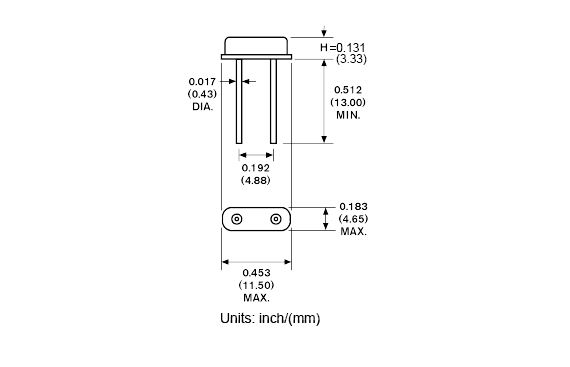

| XTAL49USBC-ET-24MHz-A | 24 | -45 to +200 | 11.5 x 4.65 x 3.33 |
|
|
| XTAL49USBC-ET-8.192MHz-A | 8.192 | -45 to +200 | 11.5 x 4.65 x 3.33 |
|
|

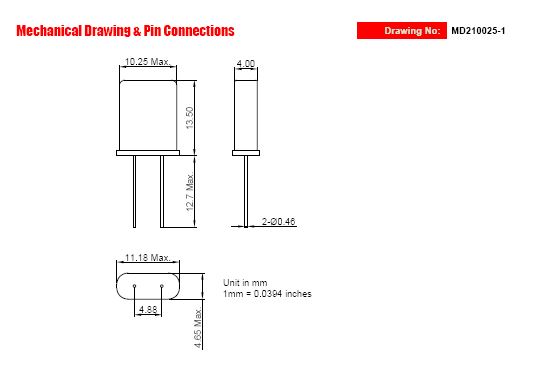

| XTAL49UCK-17MHz-A | 17 | -20 to +70 | 11.18 x 4.65 x 13.5 |
|
|

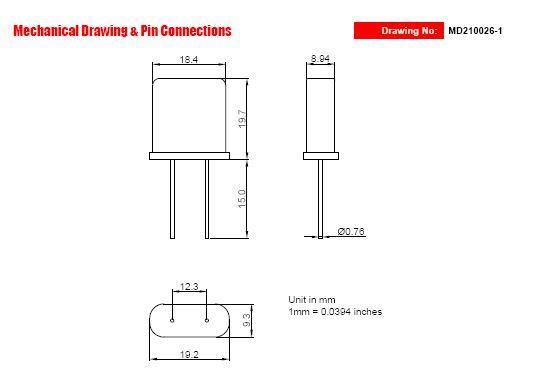

| XTAL51UCK-1.4MHz-A | 1.4 | -20 to +70 | 18.4 x 9.3 x 19.7 |
|
|
| XTALHC51BA-455KHz-A | 0.455 | 0 to +75 | 19.23 x 8.94 x 19.69 |
|
|
| XTAL3080BM-TF-32.768KHz | 0.032768 | / | 3 x 8 |
|
|
| XTAL1046BM-TF-32.768KHz | 0.032768 | / | 1 x 4.6 |
|
|
| XTAL2060BM-TF-32.768KHz | 0.032768 | / | 2 x 6 |
|
|
| XTAL1610BM-TF-32.768KHz | 0.032768 | / | 1.6 x 1 |
|
|
| XTAL3215BM-TF-32.768KHz | 0.032768 | / | 3.2 x 1.5 |
|
|
| XTAL1210BM-TF-32.768KHz | 0.032768 | / | 1.2 x 1 |
|
|
| XTAL2012BM-TF-32.768KHz | 0.032768 | / | 2 x 1.2 |
|
|
| XTAL6914BM-TF-32.768KHz | 0.032768 | / | 6.9 x 1.4 x 1.3 |
|
|
