恒温晶振 (OCXO) 温补晶振 (TCXO) 压控晶振 (VCXO) 晶体振荡器 (XO) 晶体谐振器(Crystal) 晶体滤波器(Crystal Filters) LC滤波器模块(LC Filter) 带阻滤波器(Bandstop Filter) 声表面波滤波器（SAW Filter） 腔体滤波器(Cavity Filter) 放大器(Amplifier) 滤波器组模块(Filter Bank) 压控振荡器(VCO) 时钟模块 (Timing Module) 锁相介质振荡器(PLDRO) 锁相环(PLL)
| 产品型号 | 频率 (MHz) |
输出类型 | 频率稳定度 (ppm) |
供电电压 (V) |
工作温度范围 (°C) |
封装尺寸 长 x 宽 x 高 (mm) |
产品类别 | 规格书 | 产品图片 |
| TCXO7500S-ET | 5 to 52 | Clipped Sinewave, CMOS | 2 | 3.3, 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | Extended Temperature |
|
|
| TCXO2012S-UHS-xx.xxxMHz-A-B-C-D | 10 to 40 | Clipped Sinewave, CMOS | 0.1 | 3.3, 5 | -40 to +105 | 20.4 x 12.8 x 7.8 | Extended Temperature |
|
|
| TCXO3413 | 1.6 to 156 | LVCMOS | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 SMD | Low Noise |
|
|

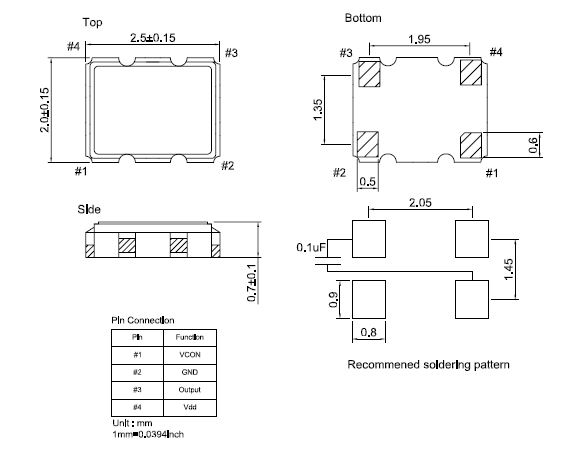

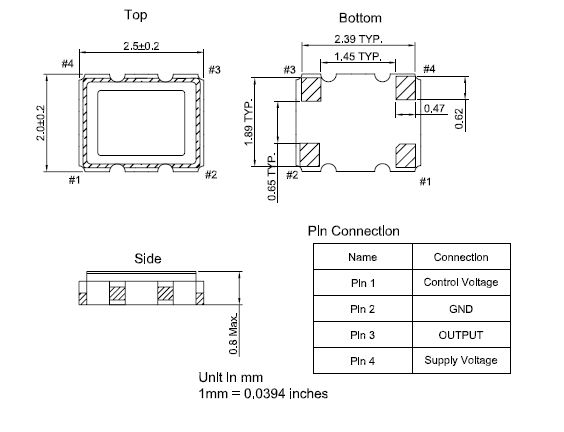

| TCXO2520S | 10 to 52 | Clipped Sinewave | 0.5 | 1.8, 2.5, 2.8 | -40 to +85 | 2.5 x 2.0 x 0.7 | Standard |
|
|
| TCXO3225S | 10 to 52 | Clipped Sinewave | 0.5 | 1.8, 2.5, 3 | -40 to +85 | 3.2 x 2.5 x 0.9 | Standard |
|
|

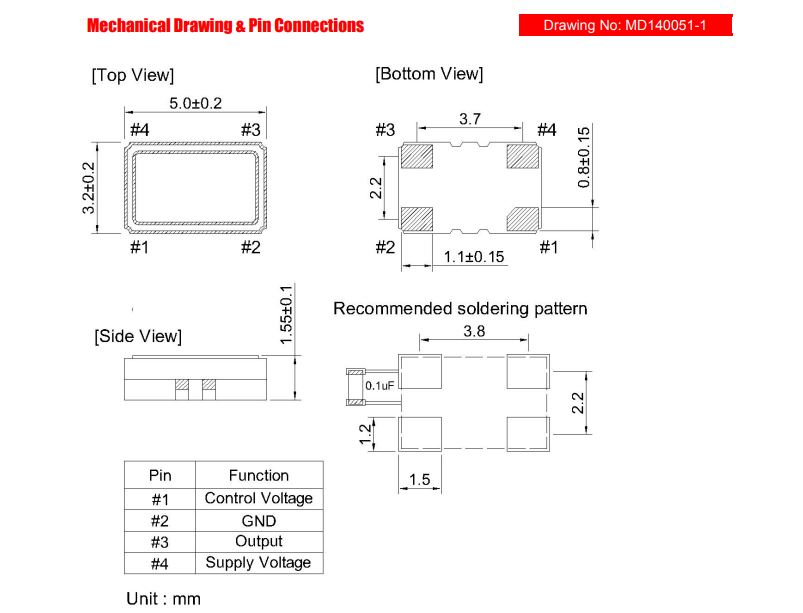

| TCXO5300S | 10 to 52 | HCMOS, Clipped Sinewave | 0.5 | 3.3, 5 | -40 to +85 | 5.0 x 3.2 x 1.1 | Standard |
|
|

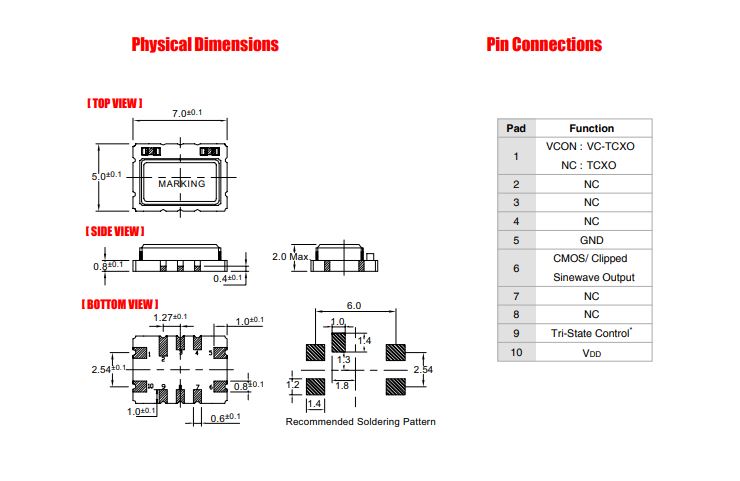

| TCXO7500S | 5 to 52 | HCMOS, Clipped Sinewave | 0.5 | 2.5, 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO2020L-xMHz-y-z | 500 to 2500 | Sinewave | 0.5 | 3.3, 5 | -40 to +85 | 20 x 20 x 8 | Integrated Module |
|
|
| TCXO2525L-xMHz-y-z | 500 to 2500 | Sinewave | 0.5 | 5 | -40 to +85 | 25.4 x 25.4 x 8 | Integrated Module |
|
|
| TCXO5440L | 300 to 1300 | Sinewave | 0.5 | 12 | -40 to +85 | 54 x 40 x 19 | Integrated Module |
|
|
| TCXO5300AP_3.3V | 10 to 40 | Clipped Sinewave, CMOS | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.5 | High Stability |
|
|
| TCXO7500AP | 10 to 52 | CMOS | 0.3 | 2.7 to 5.5 | -40 to +85 | 7.5 x 5.0 x 1.85 | High Stability |
|
|
| TCXO7500AP_3.3V | 10 to 40 | Clipped Sinewave, CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO5300AP | 10 to 52 | CMOS | 0.5 to 2 | 2.7 to 5.5 | -40 to +85 | 5.0 x 3.2 x 1.8 | High Stability |
|
|
| TCXO2521S | 9.5 to 60 | CMOS | 5 | 1.8, 2.5, 3.3 | -40 to +90 | 2.5 x 2.0 x 0.85 | SMD |
|
|

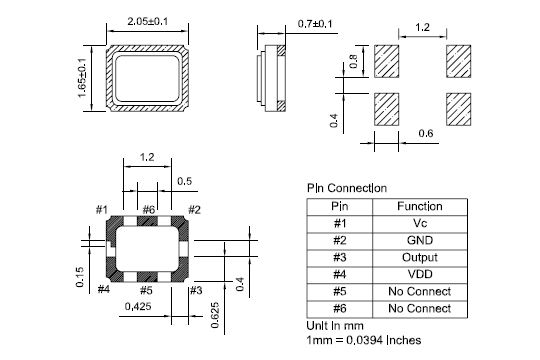

| TCXO2016S | 10 to 52 | Clipped Sinewave | 0.5 | 1.8, 2.5, 3, 3.3 | -40 to +85 | 2.0 x 1.6 x 0.8 | SMD |
|
|
| TCXO7501S | 5 to 52 | Clipped Sinewave, CMOS | 0.28 | 3.3, 5 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Precision |
|
|
| TCXO3226S | 9.5 to 60 | CMOS | 2.5 | 1.8, 2.5, 3.3 | -40 to +85 | 3.2 x 2.5 x 0.95 | SMD |
|
|
| TCXO3225BL-32.768KHz-A | 0.032768 | CMOS | 5.0 | 3.3 | -40 to +85 | 3.3 x 2.5 x 1.3 | Standard |
|
|
| TCXO914BTLG_series | 50 to 150 | Sinewave | 0.5 | 3.3 | -40 to +85 | 14.0 x 9.0 x 6.7 | High Stability |
|
|
| TCXO3225AO-25MHz-A-V | 25 | HCMOS | 1.5 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1 | Ultra-miniature SMD |
|
|
| TCXO7500BM-40MHz-B | 40 | CMOS | 0.2 | 5 | -20 to +70 | 7.0 x 5.0 x 1.9 | High Stability |
|
|
| TCXO7500BL-30.72MHz-A | 30.72 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.5 | High Stability |
|
|
| TCXO914AW-100MHz-A | 100 | LVPECL | 0.5 | 3.3 | -40 to +85 | 14.3 x 9.3 x 6.2 | High Stability |
|
|
| TCXO7500BT-50MHz-A-V | 50 | CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.8 | Standard |
|
|
| TCXO5302BM | 10 to 52 | Clipped Sinewave, CMOS | 0.1 | 2.5, 3.3 | -40 to +105 | 5.0 x 3.2 x 1.85 | High Precision |
|
|
| TCXO7502BM | 10 to 52 | Clipped Sinewave, CMOS | 0.1 | 2.5, 3.3 | -40 to +95 | 7.0 x 5.0 x 1.9 | High Precision |
|
|
| TCXO7500BTLG | 5 to 52 | Clipped Sinewave, CMOS | 0.5 | 2.8, 3, 3.3, 5 | -40 to +85 | 7.0 x 5.0 x 1.9 | Low G Sensitivity |
|
|
| TCXO7501BTLG | 5 to 100 | Clipped Sinewave, CMOS | 0.5 | 2.8, 3, 3.3, 5 | -40 to +85 | 7.0 x 5.0 x 1.75 | Low G Sensitivity |
|
|
| TCXO2522BJ-400MHz-A-V | 400 | Sinewave | 1 | 5 | -40 to +85 | 25.4 x 22.0 x 12.8 | High Stability |
|
|
| TCXO3225BL-25MHz-A-V | 25 | LVDS | 1 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | High Stability |
|
|
| TCXO2520BL | 10 to 52 | Clipped Sinewave | 1 | 1.8, 2.5, 2.8, 3, 3.3 | -40 to +85 | 2.5 x 2.0 x 0.8 | High Stability |
|
|
| TCXO2520BM-40MHz-B-V | 40 | Clipped Sinewave | 0.5 | 1.8 | -20 to +75 | 2.5 x 2.0 x 0.7 | Standard |
|
|
| TCXO2520BM-40MHz-A-V | 40 | Clipped Sinewave | 0.5 | 1.8 | -40 to +85 | 2.5 x 2.0 x 0.7 | Standard |
|
|
| TCXO2017BM | 10 to 52 | Clipped Sinewave | 0.2 | 1.8, 2.5, 2.8, 3, 3.3 | -40 to +85 | 2.05 x 1.65 x 0.7 | Standard |
|
|
| TCXO914CELN | 10 to 120 | CMOS, Sinewave | 1 | 3.3, 5 | -40 to +85 | 14.2 x 9.2 x 6 | Low Noise |
|
|
| TCXO1196BE_Sine | 10 to 50 | Sinewave | 0.5 | 3.3, 5 | -40 to +85 | 11.4 x 9.6 x 4.5 | Standard |
|
|
| TCXO1196BE_HCMOS | 0.001 to 800 | HCMOS | 0.5 | 3.3 | -40 to +85 | 11.4 x 9.6 x 4.5 | Standard |
|
|
| TCXO1212BE_Sine | 10 to 50 | Sinewave | 0.5 | 3.3, 5 | -40 to +85 | 12.7 x 12.7 x 5.1 | Standard |
|
|
| TCXO1212BE_HCMOS | 0.001 to 800 | HCMOS | 0.5 | 3.3, 5 | -40 to +85 | 12.7 x 12.7 x 5.1 | Standard |
|
|
| TCXO1812BE_Sine | 6 to 190 | Sinewave | 0.5 | 3.3, 5 | -40 to +85 | 18.5 x 12.0 x 8.5 | Standard |
|
|
| TCXO1812BE_HCMOS | 0.001 to 800 | HCMOS | 0.5 | 3.3, 5 | -40 to +85 | 18.5 x 12.0 x 8.5 | Standard |
|
|
| TCXO7500BT-12.8MHz-A | 12.8 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | Standard |
|
|
| TCXO5300BT-10MHz-A-V | 10 | CMOS | 0.25 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Precision |
|
|
| TCXO7500BT-50MHz-B-V | 50 | Clipped Sinewave | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Precision |
|
|
| TCXO3225CI-26MHz-A | 26 | Clipped Sinewave | 0.5 | 3.3 | -30 to +85 | 3.2 x 2.5 x 1.2 | High Precision |
|
|
| TCXO7500BT-26MHz-A | 26 | (LV)CMOS | 0.2 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Precision |
|
|
| TCXO5300BJ-STR3-25MHz-A | 25 | HCMOS | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.65 | High Stability |
|
|
| TCXO2013BE-80MHz-A | 80 | Sinewave | 1 | 5 | -20 to +70 | 20.7 x 13.06 x 7.5 | Standard |
|
|
| TCXO7500BT-50MHz-C-V | 50 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Precision |
|
|
| TCXO7500BT-50MHz-D-V | 50 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Precision |
|
|
| TCXO3225CK-13MHz-A | 13 | Clipped Sinewave | 2 | 3.3 | -30 to +75 | 3.2 x 2.5 x 0.9 | Standard |
|
|
| TCXO5300BT-CS-26MHz-A | 26 | CMOS | 0.2 | 3.3 | -40 to +55 | 5.0 x 3.2 x 1.7 | COSPAS SARSAT |
|
|
| TCXO914CELN | 10 to 120 | CMOS | 0.2 to 1 | 3.3, 5 | -40 to +85 | 14.2 x 9.2 x 6.0 | Low Noise |
|
|
| TCXO5234CL-16MHz-A-V | 16 | CMOS | 1 | 3.3 | -40 to +85 | 5.1 x 3.4 x 2.0 | High Precision |
|
|
| TCXO5300BT-32MHz-A | 32 | CMOS | 0.5 | 3.3 | -20 to +70 | 5.0 x 3.2 x 1.7 | High Precision |
|
|

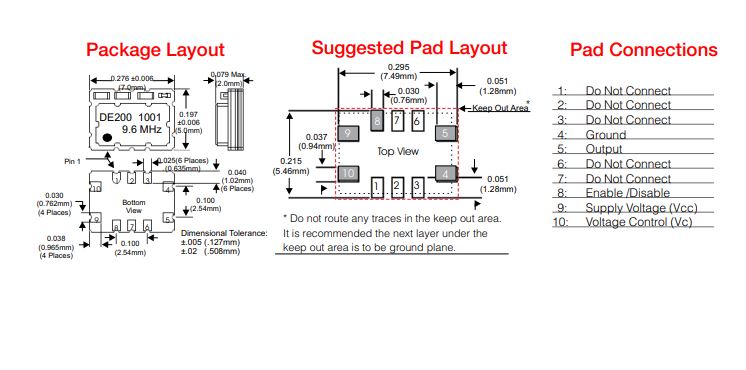

| DE200 | 32 | CMOS | 0.25 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Precision |
|
|
| HTXO3225S-16MHz-A | 16 | CMOS | 0.5 | 3.3 | -55 to +125 | 3.2 x 2.5 x 1.2 | High Temperature |
|
|
| MTCXO1000 | 0.625 to 320 | HCMOS, Clipped Sinewave | 0.05 | 5 | -40 to +85 | 20.8 x 13.2 x 16.0 | VHF |
|
|
| MTCXO1004 | 0.625 to 800 | HCMOS, Sinewave | 0.05 | 5 | -40 to +85 | 20.7 x 20.7 x 10.8 | VHF |
|
|
| MTCXO1005 | 0.625 to 320 | HCMOS, Sinewave | 0.05 | 5 | -40 to +85 | 25.4 x 22.0 x 12.7 | VHF |
|
|
| MTCXO1006 | 1.25 to 77.76 | HCMOS, Sinewave | 0.05 | 5 | -40 to +85 | 14.6 x 9.0 x 7.5 | VHF |
|
|
| T5300TMP-16.32MHz-A-V | 16.32 | CMOS | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | Low Noise |
|
|
| T5300TMP-16.32MHz-B-V | 16.32 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | Low Noise |
|
|
| TCVCXO3261 | 10 | Clipped Sinewave | 0.25 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Miniature |
|
|
| TCXO1000IM-9.6MHz | 9.6 | Sinewave | 0.6 | 5 | -42 to +70 | 25 x 15 x 5 | Standard |
|
|
| TCXO1000IM-9.6MHz-B | 9.6 | Sinewave | 0.6 | 5 | -30 to +60 | 25 x 15 x 5 | Standard |
|
|
| TCXO1000IM-9.6MHz-C | 9.6 | Sinewave | 0.6 | 5 | -20 to +70 | 25 x 15 x 4.8 | Standard |
|
|
| TCXO1000QST3 | 25 | CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Stratum 3 |
|
|
| TCXO1000QST3-20MHz | 20 | CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Stratum 3 |
|
|
| TCXO1000QST3-25MHz | 25 | CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Stratum 3 |
|
|
| TCXO119KP | 10 to 50 | Sinewave | 0.5 | 3.3, 5 | -40 to +85 | 11.4 x 9.6 x 4.5 | SMD |
|
|
| TCXO119KP-12.8MHz-A-V | 12.8 | Clipped Sinewave | 1.5 | 5 | -20 to +70 | 11.4 x 9.6 x 2.3 | SMD |
|
|
| TCXO119KPH | 0.001 to 800 | HCMOS | 1 | 3.3, 5 | -40 to +85 | 11.4 x 9.6 x 2.3 | SMD |
|
|
| TCXO119KPH6 | 1.25 to 50 | HCMOS | 0.5 | 3.3, 5 | -40 to +85 | 11.4 x 9.6 x 4 | SMD |
|
|
| TCXO1212DG-40.96MHz-A-V | 40.96 | CMOS | 1 | 3.3 | -40 to +85 | 13.2 x 13.2 x 11.3 | Standard |
|
|
| TCXO1301 | 2 to 120 | HCMOS, Sinewave | 1 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | Standard |
|
|
| TCXO1302 | 2 to 120 | HCMOS, Sinewave | 1 | 5 | -40 to +85 | 19.9 x 13.0 x 7.5 | Standard |
|
|
| TCXO1303 | 2 to 80 | HCMOS, Sinewave | 1 | 3.3 | -40 to +85 | 25.4 x 22.0 x 12.8 | Standard |
|
|
| TCXO1304 | 2 to 120 | HCMOS, Sinewave | 1 | 5 | -40 to +85 | 25.4 x 22.0 x 12.8 | Standard |
|
|
| TCXO1305 | 2 to 125 | HCMOS | 1 | 3.3 | -40 to +85 | 20.27 x 12.65 x 14.09 | Standard |
|
|
| TCXO1306 | 2 to 125 | HCMOS | 1 | 5 | -40 to +85 | 20.27 x 12.65 x 14.09 | Standard |
|
|
| TCXO1307 | 2 to 105 | HCMOS, Sinewave | 1 | 3.3 | -40 to +85 | 20.2 x 20.2 x 14.66 | Standard |
|
|
| TCXO1308 | 2 to 105 | HCMOS, Sinewave | 1 | 3.3 | -40 to +85 | 20.2 x 20.2 x 14.66 | Standard |
|
|
| TCXO1309 | 2 to 150 | HCMOS, Sinewave | 1 | 12 | -40 to +85 | 36 x 27 x 11.05 | Standard |
|
|
| TCXO1310 | 2 to 150 | HCMOS, Sinewave | 1 | 3.3 | -40 to +85 | 36 x 27 x 11.05 | Standard |
|
|
| TCXO1311 | 2 to 150 | HCMOS, Sinewave | 1 | 5 | -40 to +85 | 36 x 27 x 11.05 | Standard |
|
|
| TCXO1487K-100MHz-A-V | 100 | Clipped Sinewave | 1 | 5 | -40 to +85 | 14.3 x 7.0 x 5.5 | Standard |
|
|
| TCXO1490BF-41MHz-A-V | 41 | Sinewave | 0.5 | 5 | 0 to +50 | 14.3 x 8.7 x 5.5 | High Stability |
|
|
| TCXO1612CG-26MHz-A | 26 | Clipped Sinewave | 0.5 | 1.8 | -30 to +85 | 1.65 x 1.25 x 0.55 | High Precision |
|
|
| TCXO2012BL-40.92MHz-A-V | 40.92 | HCMOS | 0.5 | 3.3 | -20 to +70 | 20.2 x 12.8 x 13.85 | High Stability |
|
|
| TCXO2012S_series | 10 to 40 | Clipped Sinewave, CMOS | 0.03 | 3.3, 5 | -40 to +105 | 20.4 x 12.8 x 14.2 | High Stability |
|
|
| TCXO2012S-UHS-xx.xxxMHz-A-B-C-D | 10 to 40 | Clipped Sinewave, CMOS | 0.03 | 3.3, 5 | -40 to +105 | 20.4 x 12.8 x 14.2 | Ultra Stable |
|
|
| TCXO2012T-1.544MHz-A-V | 1.544 | LVCMOS | 1.5 | 3.3 | 0 to +70 | 20.4 x 12.8 x 14.2 | Low Noise |
|
|
| TCXO2013H-100MHz-A-V | 100 | Sinewave | 5 | 5 | -40 to +85 | 20.8 x 13.2 x 10 | Standard |
|
|
| TCXO2013IQ-30MHz-A-V | 30 | HCMOS | 0.5 | 5 | -20 to +55 | 20.7 x 13.06 x 7.5 | Standard |
|
|
| TCXO2013IQ-36.864MHZ-A-V | 36.864 | HCMOS | 0.5 | 5 | -20 to +55 | 20.7 x 13.06 x 7.5 | Standard |
|
|
| TCXO2013K-12MHz-A | 12 | Sinewave | 1 | 5 | -40 to +85 | 20.7 x 13.06 x 7.5 | High Performance |
|
|
| TCXO2013K-21.855MHz-A | 21.855 | Sinewave | 1 | 5 | -40 to +85 | 20.7 x 13.06 x 7.5 | High Performance |
|
|
| TCXO2013K-36.55MHz-A | 36.55 | Sinewave | 1 | 5 | -40 to +85 | 20.7 x 13.06 x 7.5 | High Performance |
|
|
| TCXO2013K-38.4MHz-B-V | 38.4 | HCMOS | 0.5 | 3.3 | -40 to +85 | 20.7 x 13.06 x 7.5 | High Stability |
|
|
| TCXO2016AO-20MHz-A-V | 20 | Clipped Sinewave | 1 | 3.3 | -40 to +85 | 2.05 x 1.65 x 0.70 | Miniature |
|
|
| TCXO2016S_series | 10 to 52 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 2.0 x 1.6 x 0.8 | Miniature |
|
|
| TCXO2020AM-26MHz-A | 26 | Squarewave | 2.5 | 3.3 | -30 to +85 | 20.4 x 20.4 x 10.7 | Standard |
|
|
| TCXO2020AM-26MHz-B | 26 | Squarewave | 1 | 3.3 | -20 to +70 | 20.4 x 20.4 x 10.7 | High Stability |
|
|
| TCXO2020K-10MHz-A-V | 10 | Clipped Sinewave | 2.5 | 5 | -30 to +75 | 20 x 20 x 10 | Standard |
|
|
| TCXO2020K-10MHz-B-V | 10 | Clipped Sinewave | 2 | 5 | -30 to +75 | 20 x 20 x 10 | Standard |
|
|
| TCXO2020K-18.432-110.592MHz | 18.432 to 110.592 | Sinewave | 0.5 | 5 | -40 to +80 | 20.7 x 20.7 x 10.0 | High Stability |
|
|
| TCXO2020KP | 1.8432 to 190 | Sinewave | 0.5 | 3.3, 5 | -40 to +85 | 20 x 20 x 5 | Standard |
|
|
| TCXO2515KP-25.6MHz-A | 25.6 | Sinewave | 0.3 | 5 | -40 to +65 | 25.75 x 15.45 x 5.6 | Ultra Stable |
|
|
| TCXO2515KP-9.6MHz | 9.6 | Sinewave | 0.25 | 5 | -40 to +70 | 25.2 x 15.2 x 5.6 | Ultra Stable |
|
|
| TCXO2520AO-26MHz-A-V | 26 | Clipped Sinewave | 0.5 | 2.8 | -30 to +85 | 2.5 x 2.0 x 0.8 | Miniature |
|
|
| TCXO2520AO-26MHz-B-V | 26 | Clipped Sinewave | 0.5 | 3.3 | -30 to +85 | 2.5 x 2.0 x 0.8 | Miniature |
|
|
| TCXO2520E | 13 to 52 | Clipped Sinewave | 0.5 | 1.8, 3.3 | -40 to +85 | 2.5 x 2.0 x 0.8 | High Stability |
|
|
| TCXO2520E-16.32MHz-A-V | 16.32 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 2.5 x 2.0 x 0.8 | High Performance |
|
|
| TCXO2520S_series | 10 to 52 | Clipped Sinewave | 0.5 | 1.8, 2.5, 2.8 | -40 to +85 | 2.5 x 2.0 x 0.7 | High Stability |
|
|
| TCXO2520S-10MHz-A-V | 10 | Clipped Sinewave | 0.5 | 3 | -40 to +85 | 2.5 x 2.0 x 0.7 | High Stability |
|
|
| TCXO2520S-26MHz-A-V | 26 | Clipped Sinewave | 0.5 | 3 | -40 to +85 | 2.5 x 2.0 x 0.7 | High Stability |
|
|
| TCXO2520S-26MHz-C | 26 | CMOS | 2.5 | 1.8 | -40 to +85 | 2.5 x 2.0 x 0.85 | Miniature |
|
|
| TCXO2520V-10MHz-B-V | 10 | Sinewave | 1 | 3.3 | -30 to +85 | 2.5 x 2.0 x 0.9 | Standard |
|
|
| TCXO2520V-10MHz-C-V | 10 | Clipped Sinewave | 1.5 | 3.3 | -40 to +85 | 2.5 x 2.0 x 0.9 | Miniature |
|
|
| TCXO2521S_series | 9.5 to 60 | CMOS | 2.5 | 1.8, 2.5, 3.3 | -40 to +85 | 2.5 x 2.0 x 0.85 | Miniature |
|
|
| TCXO2522P-500MHz-A | 500 | Sinewave | 0.5 | 3.3 | -20 to +70 | 25.4 x 22.0 x 10.5 | High Stability |
|
|
| TCXO2525L-xMHz-y-z | 500 to 2500 | Sinewave | 0.5 | 5 | -40 to +85 | 25.4 x 25.4 x 8.0 | High Stability |
|
|
| TCXO3080 | 10 to 800 | LVDS | 0.5 | 3.3 | -40 to +85 | 14.2 x 9.1 x 7.6 | UHF |
|
|
| TCXO3081 | 10 to 50 | CMOS | 1 | 3.3, 5 | -40 to +85 | 20.2 x 12.6 x 8.8 | Standard |
|
|
| TCXO3116 | 9.6 | Clipped Sinewave | 0.3 | 5 | -40 to +85 | 19.8 x 11.5 x 5.5 | High Stability |
|
|
| TCXO3118 | 10 | Clipped Sinewave | 0.5 | 5 | -40 to +85 | 7.0 x 5.0 x 0.8 | Standard |
|
|
| TCXO3126 | 9.6 | Sinewave | 0.5 | 3.3 | -40 to +85 | 20.6 x 13.0 x 7.62 | High Stability |
|
|
| TCXO3172 | 9.6 | Clipped Sinewave | 0.2 | 5 | -40 to +85 | 19.8 x 11.5 x 5.5 | High Stability |
|
|
| TCXO3178 | 2 to 50 | HCMOS, Clipped Sinewave | 0.5 | 5 | -55 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO3179 | 2 to 50 | HCMOS, Clipped Sinewave | 1 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | SMD |
|
|
| TCXO3185 | 6.4 to 52 | LVCMOS, Clipped Sinewave | 0.5 | 3.3 | 0 to +70 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| TCXO3186 | 12.8 | LVCMOS | 0.28 | 3.3 | 0 to +70 | 7.0 x 5.0 x 2.0 | High Precision |
|
|
| TCXO3189 | 19.2 | HCMOS | 0.25 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| TCXO3190 | 9.6 | Clipped Sinewave | 0.25 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| TCXO3200 | 75 | Sinewave | 1 | 12 | -40 to +85 | 20.5 x 20.5 x 10.0 | Standard |
|
|
| TCXO3200M | 9.6 to 40 | Clipped Sinewave | 1 | 2.8, 3, 5 | -40 to +85 | 3.2 x 2.5 x 1.3 | Miniature |
|
|
| TCXO3200T | 10 to 40 | Clipped Sinewave | 1 | 1.8, 3.3, 5 | -40 to +85 | 3.2 x 2.5 x 1.2 | Miniature |
|
|
| TCXO3200T-16.320000MHz | 16.32 | Clipped Sinewave | 1 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1.2 | Miniature |
|
|
| TCXO3200T-16.368000-10-0-1 | 16.368 | Clipped Sinewave | 1 | 3 | -40 to +85 | 3.2 x 2.5 x 1.2 | Miniature |
|
|
| TCXO3200T-19.200000-9-0-1 | 19.2 | Clipped Sinewave | 1.5 | 3 | -40 to +85 | 3.2 x 2.5 x 1.2 | Miniature |
|
|
| TCXO7500CL-40MHz-A-V | 40 | CMOS | 0.5 | 3.3 | -30 to +85 | 7.1 x 5.0 x 2.2 | High Precision |
|
|
| TCXO914BE-100MHz-B-V | 100 | Sinewave | 1 | 5 | -40 to +85 | 14.3 x 8.7 x 5.5 | High Stability |
|
|
| TCXO914BT-100MHz-A | 100 | Sinewave | 1 | 3.3 | -40 to +85 | 14.0 x 9.0 x 6.5 | Low Noise |
|
|
| TCXO7500CL-37.4MHz-A | 37.4 | LVCMOS | 0.5 | 3.3 | -20 to +70 | 7.0 x 5.0 x 1.9 | High Precision |
|
|
| TCXO7500CL-26MHz-A | 26 | LVCMOS | 0.5 | 3.3 | -20 to +70 | 7.0 x 5.0 x 1.9 | High Precision |
|
|
| TCXO3225AJ-18.432MHz-A | 18.432 | CMOS | 1 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1.0 | Miniature |
|
|
| TCXO3225BL-48MHz-A-V | 48 | LVCMOS | 2.5 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | Miniature |
|
|
| TCXO3225R-2.5V-LVCMOS-xMHz-y | 10 to 245 | LVCMOS | 2.5 | 2.5 | -40 to +85 | 3.2 x 2.5 x 1.6 | Miniature |
|
|
| TCXO3225R-3.3V-LVCMOS-xMHz-y | 10 to 245 | LVCMOS | 2.5 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | Miniature |
|
|
| TCXO3225S_series | 10 to 52 | Clipped Sinewave | 0.2 | 1.8, 2.5, 3 | -40 to +85 | 3.2 x 2.5 x 0.9 | Miniature |
|
|
| TCXO3225S-22MHz-A | 22 | Clipped Sinewave | 1 | 3.3 | -40 to +85 | 3.2 x 2.5 x 0.9 | Miniature |
|
|
| TCXO3225S-26MHz-A-V | 26 | Clipped Sinewave | 0.5 | 2.8 | -20 to +70 | 3.2 x 2.5 x 0.9 | Miniature |
|
|
| TCXO3225S-32MHz-A | 32 | Clipped Sinewave | 1.5 | 3.3 | -40 to +85 | 3.2 x 2.5 x 0.9 | Miniature |
|
|
| TCXO3225S-40MHz-A | 40 | Clipped Sinewave | 0.5 | 1.8 | -40 to +85 | 3.2 x 2.5 x 0.9 | Miniature |
|
|
| TCXO3225T-10MHz-A-V | 10 | Clipped Sinewave | 1 | 3 | -40 to +85 | 3.2 x 2.5 x 0.9 | High Stability |
|
|
| TCXO3225T-10MHz-B-V | 10 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 3.2 x 2.5 x 0.9 | High Stability |
|
|
| TCXO3225T-40.96MHz-A-V | 40.96 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 3.2 x 2.5 x 0.9 | High Stability |
|
|
| TCXO3226S_series | 9.5 to 60 | CMOS | 2.5 | 1.8, 2.5, 3.3 | -40 to +105 | 3.2 x 2.5 x 0.95 | Miniature |
|
|
| TCXO3275 | 10 | Clipped Sinewave | 0.5 | 2.85 | -40 to +85 | 3.2 x 2.5 x 1.2 | High Stability |
|
|
| TCXO3277 | 28.8 | Clipped Sinewave | 0.5 | 3 | -40 to +85 | 3.2 x 2.5 x 1.2 | High Stability |
|
|
| TCXO3302 | 20 | Clipped Sinewave | 2 | 5 | -40 to +85 | 18.6 x 11.0 x 8.6 | Standard |
|
|
| TCXO3305 | 20 | Sinewave | 0.45 | 5 | -30 to +55 | 20.82 x 13.08 x 8.76 | High Stability |
|
|
| TCXO3306-10.245 MHz | 10.245 | Clipped Sinewave | 2 | 3 | -40 to +85 | 5.0 x 3.2 x 1.2 | Miniature |
|
|
| TCXO3401 | 10 to 40 | HCMOS, Clipped Sinewave | 0.1 | 5 | -40 to +85 | 20.3 x 12.7 x 8.1 | High Stability |
|
|
| TCXO3402 | 6.4 to 52 | HCMOS, Clipped Sinewave | 0.25 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| TCXO3403-10.000MHz-A | 10 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Miniature |
|
|
| TCXO3403A | 10 to 32 | HCMOS, Clipped Sinewave | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Performance |
|
|
| TCXO3403RA | 10 to 50 | HCMOS, Clipped Sinewave | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Performance |
|
|
| TCXO3404 | 5 to 26 | Clipped Sinewave, Square wave | 0.37 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO3404-10.000000-3-0-1 | 10 | CMOS | 1 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Precision |
|
|
| TCXO3404-12.8MHz-A | 12.8 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO3404-19.200000-2-1-0 | 19.2 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO3404-19.2MHz | 19.2 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO3404-19.2MHz-A | 19.2 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO3404-25.6MHz-A | 25.6 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Low Noise |
|
|
| TCXO3404-40MHz-A | 40 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Precision |
|
|
| TCXO3404B-20MHz | 20 | HCMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO3405 | 10 to 40 | Clipped Sinewave | 1 | 2.8 | -40 to +85 | 5.0 x 3.2 x 1.2 | High Stability |
|
|
| TCXO3405-10.245000MHz | 10.245 | Clipped Sinewave | 2 | 3 | -40 to +85 | 5.0 x 3.2 x 1.2 | High Stability |
|
|
| TCXO3406 | 15 to 40 | Clipped Sinewave | 1 | 2.5 | -40 to +85 | 3.2 x 2.5 x 1.0 | High Stability |
|
|
| TCXO3407 | 30 to 180 | Sinewave | 1 | 3.3 | -40 to +85 | 25.5 x 22.2 x 6.7 | Low Noise |
|
|
| TCXO3408 | 200 to 1000 | LVPECL | 0.28 | 3.3 | 0 to +70 | 25.6 x 22.3 x 6.8 | High Stability |
|
|
| TCXO3409 | 200 to 1000 | LVPECL | 1 | 3.3 | -40 to +85 | 25.6 x 22.3 x 6.8 | Low Noise |
|
|
| TCXO3410 | 200 to 1000 | Sinewave | 1 | 3.3 | -40 to +85 | 20.0 x 20.0 x 6.2 | Low Noise |
|
|
| TCXO3411 | 10 to 50 | HCMOS, Clipped Sinewave | 2 | 3.3 | -55 to +95 | 5.0 x 3.2 x 2.0 | Low G Sensitivity |
|
|
| TCXO3412 | 10 to 50 | HCMOS, Clipped Sinewave | 2 | 3.3 | -55 to +95 | 7.0 x 5.0 x 2.0 | Low G Sensitivity |
|
|
| TCXO3412-10MHz | 10 | Clipped Sinewave | 2 | 5 | -55 to +95 | 7.0 x 5.0 x 2.54 | Vibration Resistant |
|
|
| TCXO3413 | 1.6 to 156 | LVCMOS | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.3 | Low Noise |
|
|
| TCXO3414 | 20 to 400 | Sinewave | 2 | 5 | -40 to +85 | 20.75 x 20.75 x 10.75 | Standard |
|
|
| TCXO3415 | 4 to 100 | Clipped Sinewave, CMOS | 1.5 | 3.3 | -40 to +85 | 18.6 x 11.0 x 8.6 | Rugged |
|
|
| TCXO3425 | 12.8 | HCMOS | 0.5 | 2.8, 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Performance |
|
|
| TCXO3437 | 16.8 | Clipped Sinewave | 1.6 | 3 | -40 to +85 | 5.0 x 3.2 x 1.2 | High Stability |
|
|
| TCXO3500 | 10 to 100 | HCMOS | 0.8 | 3.3 | -40 to +85 | 14.4 x 9.5 x 5.9 | Low Noise |
|
|
| TCXO3530 | 13 to 52 | Clipped Sinewave | 2 | 1.8, 2.5, 2.8 | -40 to +85 | 2.5 x 2.0 x 0.7 | Miniature |
|
|
| TCXO3531 | 10 to 52 | Clipped Sinewave | 2 | 1.8, 2.5, 3 | -40 to +85 | 3.2 x 2.5 x 0.9 | Standard |
|
|
| TCXO3534 | 6 to 190 | Sinewave | 0.5 | 3.3 | -40 to +85 | 21.3 x 11.7 x 4.9 | High Stability |
|
|
| TCXO3535 | 16.32 | CMOS | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Stability |
|
|
| TCXO3536 | 16.32 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Stability |
|
|
| TCXO3537 | 40 | Clipped Sinewave | 0.1 | 3.3 | -40 to +85 | 20.32 x 12.7 x 10.9 | High Stability |
|
|
| TCXO3600 | 20 to 100 | HCMOS, Clipped Sinewave | 2 | 2.8, 3.3, 5 | -40 to +85 | 9.3 x 7.6 x 3.8 | Low Noise |
|
|
| TCXO3627GR-20MHz-A | 20 | CMOS | 0.05 | 3.3 | -55 to +85 | 36.1 x 26.9 x 12.4 | Ultra Stable |
|
|
| TCXO3627BT-5MHz-A-V | 5 | Sinewave | 1 | 5 | -20 to +70 | 36.1 x 27.2 x 10.0 | Standard |
|
|
| TCXO3700 | 6.4 to 52 | HCMOS | 0.8 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.3 | Miniature |
|
|
| TCXO3700-10.000000-3-1 | 10 | LVCMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.3 | Miniature |
|
|
| TCXO3700-20.000000-3-0 | 20 | LVCMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.3 | Miniature |
|
|
| TCXO4001 | 12.8 | Clipped Sinewave | 1 | 3 | -40 to +85 | 3.2 x 2.5 x 1.2 | Miniature |
|
|
| TCXO4122K-5.6MHz-A | 5.6 | Sinewave | 0.5 | 13.6 | -20 to +60 | 41.0 x 22.0 x 19.0 | Custom |
|
|
| TCXO5300AP_3.3Vseries | 10 to 40 | Clipped Sinewave, CMOS | 0.07 | 3.3 | -40 to +105 | 5.0 x 3.2 x 1.5 | Extended Temperature |
|
|
| TCXO5300 | 9.6 to 40 | HCMOS, Clipped Sinewave | 1.5 | 2.8, 3.0, 3.3, 5.0 | -40 to +85 | 5.0 x 3.2 x 1.2 | High Performance |
|
|
| TCXO5300AP_series | 10 to 52 | Clipped Sinewave, CMOS | 0.05 | 2.7 to 5.5 | -40 to +85 | 5.0 x 3.2 x 1.8 | Ultra Stable |
|
|
| TCXO5300AP-10MHz-A-V | 10 | Clipped Sinewave | 0.1 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.8 | High Stability |
|
|
| TCXO5300AP-10MHz-B-V | 10 | CMOS | 1 | 2.5 to 3.7 | -40 to +85 | 5.0 x 3.2 x 1.8 | High Stability |
|
|
| TCXO5300AP-20MHz-A-V | 20 | CMOS | 1 | 2.5 to 3.3 | -40 to +85 | 5.0 x 3.2 x 1.8 | High Stability |
|
|
| TCXO5300AP-31.3MHz-A-V | 31.3 | CMOS | 0.3 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.8 | High Stability |
|
|
| TCXO5300BT-25MHz-A-V | 25 | CMOS | 0.28 | 3.3 | -55 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300CHP | 6.4 to 26 | Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 2.1 | Standard |
|
|
| TCXO5300GR-10MHz-A | 10 | Clipped Sinewave | 0.3 | 3.3 | -40 to +85 | 5.0 x 3.2 x 2.1 | Clock Reference |
|
|
| TCXO5300IQ-10MHz-A-V | 10 | HCMOS | 1 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.8 | High Performance |
|
|
| TCXO5300MC | 6 to 160 | CMOS | 25 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.2 | Standard |
|
|
| TCXO5300QC-24MHz | 24 | Clipped Sinewave | 0.5 | 3.3 | -30 to +85 | 5.0 x 3.2 x 1.2 | High Stability |
|
|
| TCXO5300-QCOM-24.000MHz | 24 | Clipped Sinewave | 0.5 | 3.3 | -30 to +85 | 5.0 x 3.2 x 1.2 | High Stability |
|
|
| TCXO5300QHP | 10 to 26 | CMOS | 0.28 | 3.3, 5 | -40 to +85 | 5.0 x 3.2 x 1.2 | Stratum 3 |
|
|
| TCXO5300QHP-13MHz | 13 | CMOS | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.2 | High Precision |
|
|
| TCXO5300QST3-25MHz | 25 | CMOS | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Stability |
|
|
| TCXO5300S_series | 10 to 52 | HCMOS, Clipped Sinewave | 0.5 | 3.3, 5 | -40 to +85 | 5.0 x 3.2 x 1.1 | High Stability |
|
|
| TCXO5300S-10MHz-A-V | 10 | Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.5 | High Performance |
|
|
| TCXO5300S-10MHz-B-V | 10 | CMOS | 0.2 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Performance |
|
|
| TCXO5300S-10MHz-C-V | 10 | Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Stability |
|
|
| TCXO5300S-19.2MHz-B-V | 19.2 | Clipped Sinewave | 0.05 | 3.3 | -10 to +70 | 5.0 x 3.2 x 1.55 | High Performance |
|
|
| TCXO5300S-19.2MHz-C-V | 19.2 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Stability |
|
|
| TCXO5300S-20MHz-A | 20 | CMOS | 0.1 | 3.3 | -25 to +70 | 5.0 x 3.2 x 1.55 | Ultra Stable |
|
|
| TCXO5300S-20MHz-A-V | 20 | CMOS | 0.1 | 3.3 | -25 to +70 | 5.0 x 3.2 x 1.55 | Ultra Stable |
|
|
| TCXO5300S-26MHz-A-V | 26 | Clipped Sinewave | 0.28 | 2.8 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Stability |
|
|
| TCXO5300S-26MHz-A-V | 26 | CMOS | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Performance |
|
|
| TCXO5300S-49.152MHz-A-V | 49.152 | CMOS | 1 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Stability |
|
|
| TCXO5300T-20MHz-A | 20 | CMOS | 1 | 3.3 | -30 to +70 | 5.0 x 3.2 x 1.2 | High Stability |
|
|
| TCXO5300THP | 5 to 26 | HCMOS, Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.65 | High Precision |
|
|
| TCXO5300THP_Rev3 | 5 to 26 | Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.65 | High Precision |
|
|
| TCXO5300THP-10MHz-A-V | 10 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Precision |
|
|
| TCXO5300THP-10MHz-C-V | 10 | CMOS | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Performance |
|
|
| TCXO5300THP-10MHz-D | 10 | Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Performance |
|
|
| TCXO5300THP-10MHz-D-V | 10 | Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Performance |
|
|
| TCXO5300THP-16.368MHz | 16.368 | Clipped Sinewave | 0.5 | 3.3 | -30 to +70 | 5.0 x 3.2 x 1.65 | High Precision |
|
|
| TCXO5300THP-19.2MHz-A | 19.2 | CMOS | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | Low Noise |
|
|
| TCXO5300THP-20MHz-A-V | 20 | CMOS | 0.2 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.65 | High Precision |
|
|
| TCXO5300THP-20MHz-A-V-Rev2 | 20 | CMOS | 0.2 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.65 | High Precision |
|
|
| TCXO5300THP-25MHz-A-V | 25 | Clipped Sinewave | 0.2 | 3.3 | -5 to +85 | 5.0 x 3.2 x 1.55 | High Stability |
|
|
| TCXO5300THP-26MHz-A | 26 | CMOS | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.65 | High Precision |
|
|
| TCXO5300TV-16.368MHz | 16.368 | Clipped Sinewave | 0.5 | 2.8 | -30 to +70 | 5.0 x 3.2 x 1.2 | Standard |
|
|
| TCXO5300TX-16.368MHz | 16.368 | Clipped Sinewave | 0.5 | 3 | -30 to +70 | 5.0 x 3.2 x 1.0 | Standard |
|
|
| TCXO5300ULG-10MHz-A-V | 10 | CMOS | 0.2 | 3.3 | -40 to +85 | 5.0 x 3.2 x 2.16 | High Stability |
|
|
| TCXO5300ULG-ET-10MHz-A-V | 10 | CMOS | 0.2 | 3.3 | -55 to +95 | 5.0 x 3.2 x 2.16 | High Stability |
|
|
| TCXO5300Z-10.23MHz-A | 10.23 | CMOS | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300Z-10MHz-A-V | 10 | HCMOS | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | Extended Temperature |
|
|
| TCXO5300Z-12.678303MHz-A | 12.678303 | CMOS | 0.2 | 3.3 | -20 to +55 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300Z-15.050000MHz-A | 15.05 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Precision |
|
|
| TCXO5300Z-26MHz-A-V | 26 | CMOS | 0.5 | 2.85 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Performance |
|
|
| TCXO5300Z-UHS-10.0MHz | 10 | Clipped Sinewave | 0.1 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300Z-UHS-19.2MHz | 19.2 | Clipped Sinewave | 0.1 | 5 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300Z-UHS-20MHz | 20 | Clipped Sinewave | 0.1 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5301 | 9.6 to 40 | Clipped Sinewave | 1 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.2 | High Performance |
|
|
| TCXO5302BM_series | 10 to 52 | Clipped Sinewave, CMOS | 0.05 | 2.5, 3.3 | -40 to +105 | 5.0 x 3.2 x 1.85 | High Precision |
|
|
| TCXO5320S-10MHz-D-V | 10 | CMOS | 0.28 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.55 | High Stability |
|
|
| TCXO5300CL-24.576MHz-A-V | 24.576 | CMOS | 1 | 3.3 | -40 to +85 | 5.2 x 3.4 x 2.0 | High Precision |
|
|

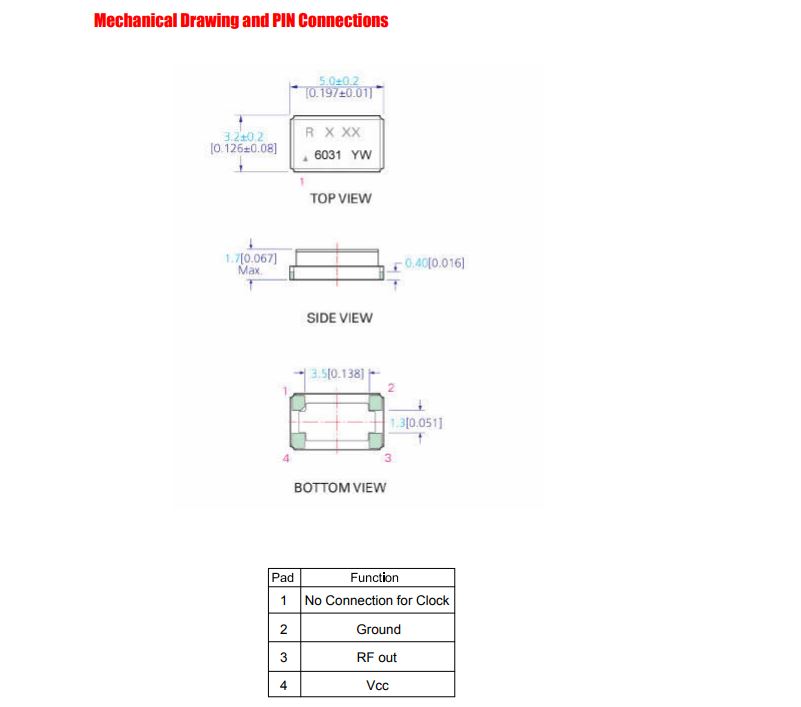

| TCXO6031RHP-16.8MHz-A | 16.8 | CMOS | 0.5 | 3.3 | -55 to +80 | 5.0 x 3.2 x 1.7 | High Precision |
|
|
| TCXO7500AL-10MHz-A | 10 | CMOS | 5 | 5 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Stability |
|
|
| TCXO7500AO-16.384MHZ-A | 16.384 | CMOS | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Stability |
|
|
| TCXO7500AP_3.3Vseries | 10 to 40 | Clipped Sinewave, CMOS | 0.07 | 3.3 | -40 to +105 | 7.0 x 5.0 x 2.0 | Ultra Stable |
|
|
| TCXO7500AP_series | 10 to 52 | Clipped Sinewave, CMOS | 0.3 | 2.7 to 5.5 | -40 to +85 | 7.0 x 5.0 x 1.85 | High Stability |
|
|
| TCXO7500AP-10MHz-A-V | 10 | CMOS | 1 | 2.5, 3.3 | -40 to +85 | 7.0 x 5.0 x 1.85 | High Stability |
|
|
| TCXO7500AP-20MHz-A-V | 20 | CMOS | 1 | 2.5, 3.3 | -40 to +85 | 7.0 x 5.0 x 1.85 | High Stability |
|
|
| TCXO7500BM-40MHz-A | 40 | CMOS | 0.1 | 5 | -20 to +70 | 7.0 x 5.0 x 1.9 | Ultra Stable |
|
|
| TCXO7500ETZ-10MHz-A-V | 10 | Clipped Sinewave | 0.8 | 3.3 | -55 to +85 | 7.0 x 5.0 x 1.75 | Extended Temperature |
|
|
| TCXO7500ETZ-10MHz-A-V | 10 | Clipped Sinewave | 0.8 | 3.3 | -55 to +85 | 7.0 x 5.0 x 1.75 | Extended Temperature |
|
|
| TCXO7500ETZ-16.8MHz-B-V | 16.8 | CMOS | 0.8 | 3.3 | -55 to +85 | 7.0 x 5.0 x 1.75 | Extended Temperature |
|
|
| TCXO7500ETZ-20MHz-A-V | 20 | Clipped Sinewave | 0.8 | 3.3 | -55 to +85 | 7.0 x 5.0 x 1.75 | Extended Temperature |
|
|
| TCXO7500L | 12 to 800 | Differential LVDS | 2 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.3 | Low Noise |
|
|
| TCXO7500MC-15.5MHz-A-V | 15.5 | CMOS | 2 | 3.3 | -30 to +85 | 7.0 x 5.0 x 2.5 | Standard |
|
|
| TCXO7500QC-16.800MHz-ET | 16.8 | CMOS | 0.5 | 3.3 | -55 to +85 | 7.0 x 5.0 x 1.75 | High Precision |
|
|
| TCXO7500QC-50MHz-A | 50 | Clipped Sinewave | 0.5 | 3.3 | -55 to +95 | 7.0 x 5.0 x 1.75 | Extended Temperature |
|
|
| TCXO7500QC-50MHz-A-V | 50 | LVCMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Precision |
|
|
| TCXO7500QC-51.2MHz-A | 51.2 | CMOS | 0.3 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500QC-51.2MHz-A-V | 51.2 | CMOS | 0.3 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500QC-5MHz-A | 5 | CMOS | 0.5 | 3.3 | 0 to +70 | 7.0 x 5.0 x 1.75 | Standard |
|
|
| TCXO7500QCHP-40MHz-A | 40 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Precision |
|
|
| TCXO7500QCHP-50MHz-A | 50 | CMOS | 0.5 | 3 | -40 to +85 | 7.0 x 5.0 x 1.75 | Low Noise |
|
|
| TCXO7500QST3 | 9.8304 to 32 | CMOS | 0.28 | 3.3, 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | Stratum 3 |
|
|
| TCXO7500R-50MHz-A | 50 | CMOS | 1.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.5 | Standard |
|
|
| TCXO7500S-12.8MHz-A | 12.8 | CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500S-16.32MHz-A-V | 16.32 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500S-19.2MHz-A-V | 19.2 | Clipped Sinewave | 0.2 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500S-20MHz-A-V | 20 | CMOS | 0.28 | 1.5 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500S-25.6MHz-A-V | 25.6 | CMOS | 0.2 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500S-25.6MHz-B-V | 25.6 | Clipped Sinewave | 0.2 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500S-28.8MHz-A-V | 28.8 | CMOS | 0.25 | 3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500S-30.72MHz-A-V | 30.72 | CMOS | 0.25 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500S-30MHz-A-V | 30 | CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Stability |
|
|
| TCXO7500S-6.4MHz-A-V | 6.4 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500S-6.4MHz-B-V | 6.4 | CMOS | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Performance |
|
|
| TCXO7500T | 5 to 40 | Clipped Sinewave, CMOS | 0.1 | 3.3, 5 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-10MHz-B | 10 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| TCXO7500T-12.68875MHz-A | 12.68875 | Clipped Sinewave | 0.2 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-19.2MHz-A-V | 19.2 | Clipped Sinewave | 0.2 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-20MHz-A-V | 20 | HCMOS | 0.25 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-24.576MHz-A | 24.576 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-24MHz-A-V | 24 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Precision |
|
|
| TCXO7500T-25.600MHz-A | 25.6 | CMOS | 0.3 | 3.3 | -40 to +75 | 7.0 x 5.0 x 1.9 | High Stability |
|
|
| TCXO7500T-25.600MHz-B | 25.6 | Clipped Sinewave | 0.25 | 5 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-25.6MHz-C | 25.6 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-28.8MHz-A-V | 28.8 | Clipped Sinewave | 0.25 | 5 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-30.720MHz-A-V | 30.72 | Clipped Sinewave | 0.25 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-32.000MHz-A | 32 | Clipped Sinewave | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500T-50MHz-A-V | 50 | LVCMOS | 0.37 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500TA-20MHz-A | 20 | CMOS | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500THP-19.2MHz-A | 19.2 | Sinewave | 0.25 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO7500THP-9.6MHz-X | 9.6 | Clipped Sinewave | 0.28 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | High Stability |
|
|
| TCXO7500Z-12.6883750MHz-A | 12.688375 | CMOS | 0.2 | 3.3 | -20 to +55 | 7.0 x 5.0 x 1.75 | Analogue |
|
|
| TCXO7500Z-12.688656MHz-A | 12.688656 | CMOS | 0.2 | 3.3 | -20 to +55 | 7.0 x 5.0 x 1.75 | COSPAS SARSAT |
|
|
| TCXO7500Z-12.688750MHz-A | 12.68875 | CMOS | 0.2 | 3.3 | -20 to +55 | 7.0 x 5.0 x 1.75 | Analogue |
|
|
| TCXO7500Z-12.8MHz-A | 12.8 | CMOS | 0.2 | 3.3 | -20 to +55 | 7.0 x 5.0 x 1.75 | Analogue |
|
|
| TCXO7500Z-19.2MHz-A-V | 19.2 | Clipped Sinewave | 0.2 | 3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Performance |
|
|
| TCXO7500Z-20MHz-A | 20 | CMOS | 0.2 | 3.3 | -40 to +55 | 7.0 x 5.0 x 1.75 | Analogue |
|
|
| TCXO7500Z-25.37750MHz-A | 25.3775 | CMOS | 0.2 | 3.3 | -20 to +55 | 7.0 x 5.0 x 1.75 | Analogue |
|
|
| TCXO7500Z-40MHz-A | 40 | Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | Standard |
|
|
| TCXO7500Z-40MHz-A-V | 40 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Analogue |
|
|
| TCXO7500Z-48MHz-A-V | 48 | CMOS | 0.3 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Stability |
|
|
| TCXO7500Z-50MHz-A | 50 | CMOS | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| TCXO7500Z-50MHz-A-V | 50 | CMOS | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Stability |
|
|
| TCXO7500Z-50MHz-B-V | 50 | Clipped Sinewave | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXO7500ZLGCS | 10 to 25 | Sinewave | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | Standard |
|
|
| TCXO7500ZLGSQ | 10 to 25 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | Standard |
|
|
| TCXO7500Z-UHS-20MHz | 20 | Sinewave | 0.1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Stability |
|
|
| TCXO7501BM_series | 10 to 52 | Clipped Sinewave, CMOS | 0.1 | 2.5, 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Precision |
|
|
| TCXO7501S_series | 5 to 52 | Clipped Sinewave, CMOS | 0.28 | 3.3, 5 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Precision |
|
|
| TCXO7501TC-10M | 10 | Clipped Sinewave | 2 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| TCXO7502BM_series | 10 to 52 | Clipped Sinewave, CMOS | 0.1 | 2.5, 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Precision |
|
|
| TCXO911BTLG_series | 50 to 125 | CMOS | 0.25 | 3.3 | -40 to +85 | 11.4 x 9.6 x 6.7 | High Stability |
|
|

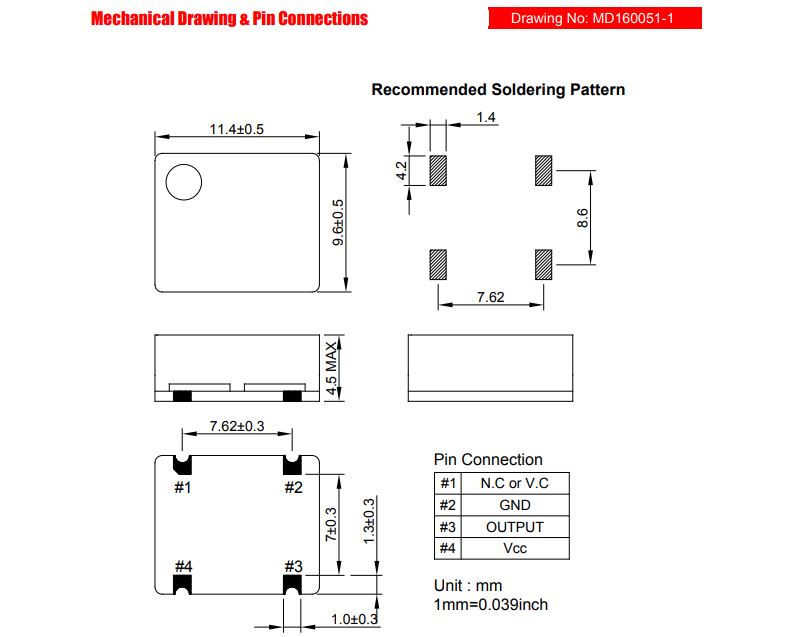

| TCXO911K-10MHz-A | 10 | HCMOS | 1 | 3.3 | -40 to +85 | 11.4 x 9.6 x 2.3 | High Performance |
|
|
| TCXO911K-20MHz-A-V_Rev2 | 20 | Sinewave | 1 | 3.3 | -40 to +85 | 11.4 x 9.6 x 4.5 | High Performance |
|
|
| TCXO911Z-28.8MHz-A | 28.8 | Sinewave | 0.3 | 3.3 | -40 to +85 | 11.4 x 9.6 x 2.4 | High Stability |
|
|
| TCXO911Z-28.8MHz-A-V | 28.8 | Sinewave | 0.3 | 3.3 | -40 to +85 | 11.4 x 9.6 x 2.4 | High Stability |
|
|
| TCXO912BTLG_HCMOS | 50 to 150 | LVHCMOS | 0.5 | 3.3 | -40 to +85 | 11.4 x 9.6 x 6.7 | High Stability |
|
|
| TCXO912BTLG_Sine | 50 to 150 | Sinewave | 0.5 | 3.3 | -40 to +85 | 11.4 x 9.6 x 6.7 | High Stability |
|
|
| TCXO2013BE-100MHz-A | 100 | HCMOS | 1 | 3.3 | -40 to +85 | 20.0 x 13.0 x 7.5 | High Stability |
|
|
| TCXO2013BE-55MHz-A | 55 | Clipped Sinewave | 1 | 5 | -40 to +85 | 20.0 x 13.0 x 7.5 | High Stability |
|
|
| TCXO914BE-100MHz-A | 100 | LVPECL | 1 | 3.3 | -40 to +85 | 14.4 x 9.5 x 5.5 | High Stability |
|
|
| TCXO914K-62MHz-A-V_Rev1 | 62 | Sinewave | 1 | 3.3 | -40 to +85 | 14.3 x 8.7 x 5.5 | Standard |
|
|

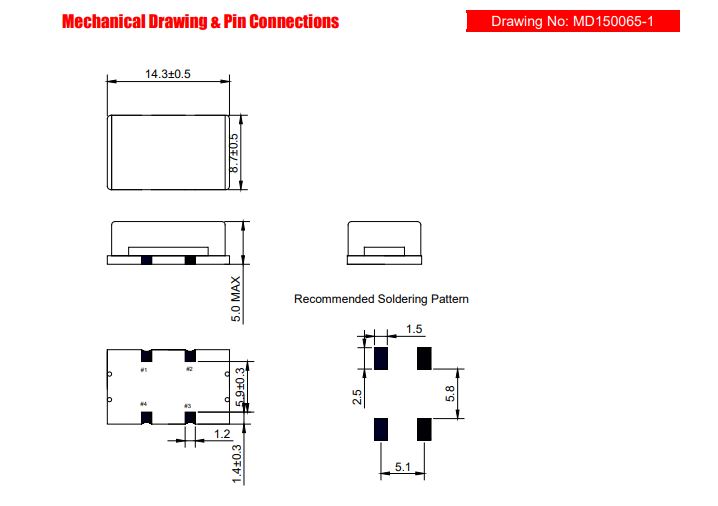

| TCXO914K-70MHz-A | 70 | HCMOS | 1 | 5 | -40 to +85 | 14.3 x 8.7 x 5.5 | Standard |
|
|
| TCXO914K-76.8MHz-A-V | 76.8 | HCMOS | 2 | 3.3 | -40 to +85 | 14.3 x 8.7 x 5.5 | Standard |
|
|
| TCXO914K-80MHz-A-V | 80 | HCMOS | 2 | 3.3 | -40 to +85 | 14.3 x 8.7 x 5.5 | Standard |
|
|
| TCXO914QST3 | 10 to 100 | HCMOS | 0.28 | 3.3, 5 | -40 to +85 | 14.0 x 9.0 x 5.0 | Stratum 3 |
|
|
| TCXO914T-16.384MHz-A-V | 16.384 | CMOS | 0.1 | 3.3 | -40 to +85 | 14.99 x 9.32 x 4.0 | High Performance |
|
|
| TCXO914U-70MHz-A | 70 | CMOS Square Wave | 0.2 | 5 | -40 to +85 | 14.22 x 9.14 x 6.48 | Low Noise |
|
|
| TCXO914VHS-100MHz-A | 100 | HCMOS | 0.5 | 5 | -40 to +85 | 14.4 x 9.5 x 6.2 | Low G Sensitivity |
|
|
| TCXO914Z-101.75MHz-A-V | 101.75 | HCMOS | 1 | 3.3 | -40 to +85 | 14.0 x 9.0 x 5.0 | High Stability |
|
|
| TCXO914Z-28.8MHz-A-V | 28.8 | HCMOS | 0.3 | 3.3 | -40 to +85 | 14.0 x 9.0 x 5.0 | Standard |
|
|
| TCXO914Z-2RF-20MHz-B | 20 | Sinewave | 0.28 | 3.3 | -40 to +85 | 14.0 x 9.0 x 6.0 | High Precision |
|
|
| TCXO914Z-2RF-20MHz-C | 20 | Sinewave | 0.28 | 3.3 | -40 to +85 | 14.0 x 9.0 x 6.0 | High Precision |
|
|
| TCXO915AM-100Mhz-A-V | 100 | Sinewave | 0.5 | 5 | -40 to +85 | 15.0 x 9.0 x 5.0 | Stable |
|
|
| TCXO915BTLG_HCMOS | 40 to 200 | LVHCMOS | 0.5 | 3.3 | -40 to +85 | 14.0 x 9.0 x 6.7 | High Stability |
|
|
| TCXO915BTLG_Sine | 40 to 200 | Sinewave | 1 | 3.3 | -40 to +85 | 14.0 x 9.0 x 6.7 | High Stability |
|
|
| TCXOB1000ET | 20 to 120 | Sinewave, CMOS | 5 | 12 | -55 to +125 | 26.16 x 26.16 x 13.46 | Extended Temperature |
|
|
| TCXOBE-001-100MHz | 100 | Sinewave | 1.5 | 5 | -20 to +70 | 20.8 x 13.2 x 10.0 | Low Noise |
|
|
| TCXOBE-001-80MHz | 80 | Sinewave | 1.5 | 5 | -20 to +70 | 20.8 x 13.2 x 10.0 | Low Noise |
|
|
| TCXOBE-002-100MHz | 100 | Sinewave | 2 | 5 | -20 to +70 | 20.8 x 13.2 x 10.0 | Low Noise |
|
|
| TCXOBEIM-100MHz-A | 100 | Sinewave | 1 | 5 | -40 to +85 | 25.4 x 19.04 without cover | SMD |
|
|
| TCXOBEIM-100MHz-B_Rev2 | 100 | Sinewave | 2.5 | 5 | -40 to +85 | 25.4 x 19.04 without cover | SMD |
|
|
| TCXOBEIM-100MHz-C-V | 100 | Sinewave | 2 | 3.3 | -40 to +85 | 25.4 x 19.04 without cover | SMD |
|
|

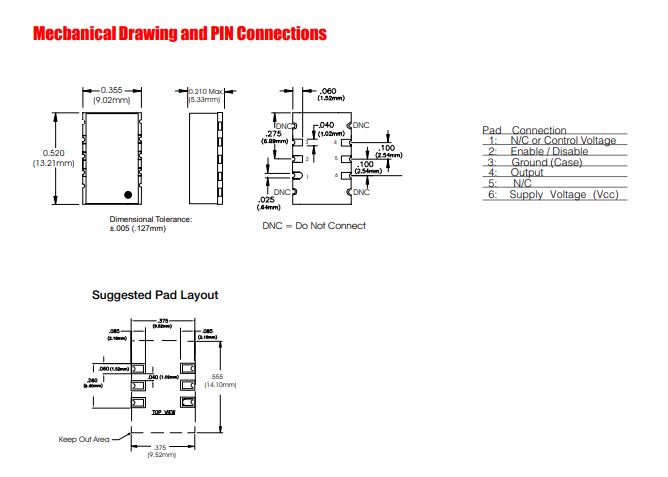

| TCXOCW914-50MHz | 50 | HCMOS | 1 | 3.3 | -40 to +85 | 13.21 x 9.02 x 5.33 | Low Noise |
|
|
| TCXODE200V_Rev2 | 9.6 | Clipped Sinewave | 0.2 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | SMD |
|
|
| TCXODE300V_Rev2 | 9.6 | Clipped Sinewave | 0.5 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | SMD |
|
|
| TCXOKP119-22MHz-A | 22 | HCMOS | 2.5 | 3 | -40 to +85 | 11.4 x 9.6 x 5.0 | SMD |
|
|
| TCXOKP1911-12.8MHz-A-V | 12.8 | HCMOS | 2 | 5 | -40 to +85 | 19.8 x 12.5 x 5.2 | Wide Tuning Range |
|
|
| TCXOKP914-60MHz-A-V | 60 | Clipped Sinewave | 2.5 | 3.3 | -40 to +85 | 14.5 x 8.7 x 5.0 | High Performance |
|
|
| TCXOKSMD1000M | 1000 | Sinewave | 1 | 10 | -20 to +70 | 25.4 x 22.0 x 11.5 | Low Noise |
|
|
| TCXOKSMD100M | 100 | Sinewave | 1 | 5 | -40 to +85 | 18.9 x 12.9 x 6.0 | SMD |
|
|
| TCXOLN100M | 100 | Sinewave | 1 | 5 | -40 to +85 | 18.9 x 12.9 x 6.0 | Standard |
|
|
| TCXOMAR01 | 9.6 | Clipped Sinewave | 0.195 | 5 | -40 to +85 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| TCXO2013BE-100MHz-B | 100 | HCMOS | 0.28 | 3.3 | -40 to +85 | 20.7 x 13.06 x 7.5 | High Stability |
|
|
| TCXO1911BM-9.6MHz-A-V | 9.6 | Clipped Sinewave | 0.25 | 5 | -40 to +85 | 19.8 x 11.5 x 5.5 | High Stability |
|
|
| TCXOQC119-50MHz-LN | 50 | HCMOS | 2.5 | 3.3 | -40 to +85 | 11.4 x 9.6 x 1.85 | Low Noise |
|
|
| TCXOQC914ST3-50MHz | 50 | HCMOS | 4.6 | 3.3 | -40 to +85 | 14.0 x 9.0 x 5.0 | Stratum 3 |
|
|
| TCXOT7500-10MHz-A | 10 | Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|
| TCXOT79-20MHz | 20 | HCMOS | 0.5 | 3.3 | -40 to +85 | 20.82 x 13.21 x 7.62 | Standard |
|
|
| TCXOT79-50MHz | 50 | Sinewave | 0.5 | 3.3 | -40 to +85 | 20.82 x 13.21 x 7.62 | Standard |
|
|
| TCXOTC-19.2MHz | 19.2 | HCMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| TCXOVHP1000 | 6.4 to 26 | CMOS | 0.14 | 3.3 | -40 to +85 | 20.7 x 13.1 x 5.85 | Standard |
|
|

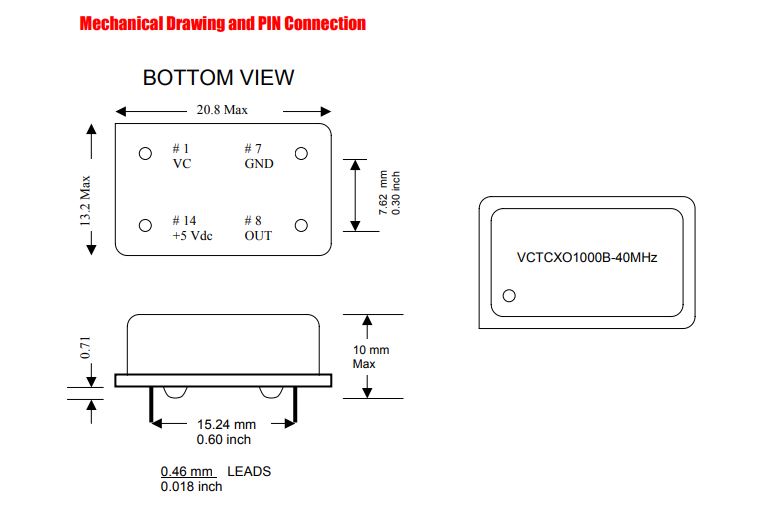

| VCTCXO1000B-40MHz | 40 | HCMOS | 1 | 3.3 | -40 to +85 | 20.8 x 13.2 x 10.0 | Low Noise |
|
|
| VCTCXO1000QST3-25MHz | 25 | CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Stratum 3 |
|
|
| VCTCXO-2.5-3.2-LVCMOS-31.3MHz | 31.3 | LVCMOS | 1 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | Standard |
|
|
| VCTCXO-2.5-3.2-LVCMOS-xMHz | 10 to 245 | LVCMOS | 0.5 | 2.5, 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | Standard |
|
|
| VCTCXO-2.5-3.2-LVDS-xMHz | 10 to 1450 | LVDS | 0.5 | 2.5, 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | Standard |
|
|
| VCTCXO-2.5-3.2-LVPECL-xMHz | 10 to 1450 | LVPECL | 0.5 | 2.5, 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | Standard |
|
|
| VCTCXO2000QST3-12.800MHz | 12.8 | CMOS | 0.37 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Stratum 3 |
|
|
| VCTCXO3125 | 16.8 | Clipped Sinewave | 1.5 | 3.3 | -30 to +70 | 5.0 x 3.2 x 1.2 | Standard |
|
|
| VCTCXO3404 | 5 to 26 | Clipped Sinewave, CMOS | 0.37 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| VCTCXO3404A-26M | 26 | Clipped Sinewave | 0.2 | 3.3 | -10 to +60 | 7.0 x 5.0 x 2.0 | Standard |
|
|
| VCTCXO3404F-19.44MHz-A | 19.44 | HCMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.0 | SMD |
|
|
| VCTCXOGR120-28.8MHz | 28.8 | CMOS Square Wave | 0.7 | 5 | -40 to +85 | 22.9 x 17.8 x 6.4 | Extended Temperature |
|
|
| VCTCXOGR22-50ppb-10MHz | 10 | Sinewave | 0.5 | 5 | -40 to +85 | 19.7 x 19.7 x 10.0 | Next Generation |
|
|
| VCTCXOQC911-50MHz | 50 | Clipped Sinewave | 2 | 5 | -40 to +85 | 11.4 x 9.6 x 1.85 | Standard |
|
|
| TCXO1911BM-9.6MHz-A-V | 9.6 | Clipped Sinewave | 0.25 | 5 | -40 to +85 | 19.8 x 11.5 x 5.5 | Ultra Stable |
|
|
| TCXO3225BL-1000MHz-B-V | 1000 | LVDS | 2 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | Standard |
|
|
| TCXO3225BL-1000MHz-A-V | 1000 | PECL | 2 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | Standard |
|
|
| TCXO7500AN-WT | 8 to 52 | Clipped Sinewave, HCMOS | 2 | 2.8, 3.0, 3.3 | -55 to +125 | 7.0 x 5.0 x 2.0 | Wide Temperature |
|
|
| TCXO5300BM-STR3-40MHz-A | 40 | Clipped Sinewave | 0.28 | 3.3 | -40 to +85 | 5.00 x 3.20 x 1.85 | SMD |
|
|

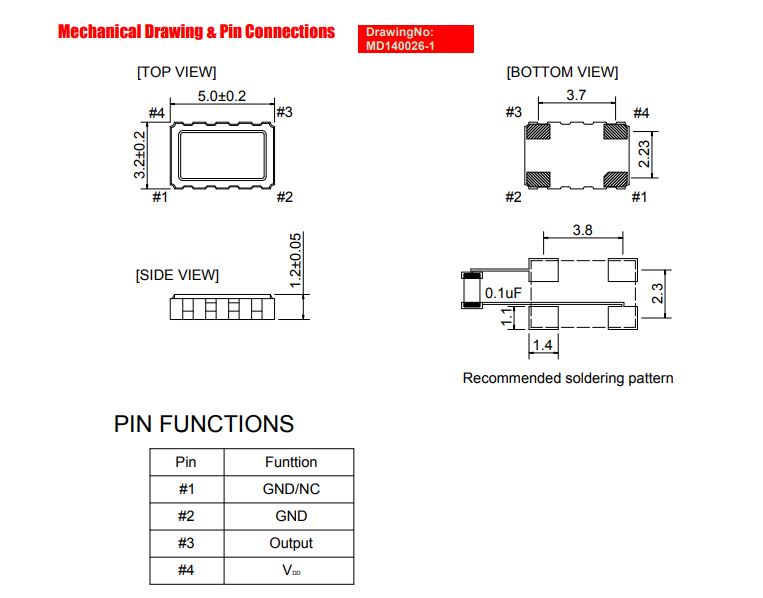

| TCXO5032AT-20MHz-A | 20 | HCMOS | 2.5 | 3.3 | -30 to +85 | 5.0 x 3.2 x 1.5 | High Precision |
|
|
| TCXO7500BT-LG-20MHz-A | 20 | Clipped Sinewave | 1 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | Low G Sensitivity |
|
|
| TCXO5300BT-HS_CS | 5 to 100 | Clipped Sinewave | 0.05 to 1.0 | 2.5, 2.8, 3.0, 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS_CMOS | 5 to 100 | CMOS | 0.05 to 1.0 | 2.5, 2.8, 3.0, 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-2232 | 10 | Clipped Sinewave | 0.1 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-1232 | 10 | Clipped Sinewave | 0.1 | 3.3 | -20 to +70 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO7501BL-30.72MHz-A | 30.72 | CMOS | 2 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.5 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-1332 | 10 | Clipped Sinewave | 0.2 | 3.3 | -20 to +70 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-2332 | 10 | Clipped Sinewave | 0.2 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO7500BM-40MHz-C | 40 | Clipped Sinewave | 0.2 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.9 | Ultra Stable |
|
|
| GTCXO2525BF-1030MHz-A | 1030 | Sinewave | 1 | 5 | -40 to +85 | 25.4 x 25.4 x 8.0 | Gated High Stability |
|
|
| GTCXO2525BF-1090MHz-A | 1090 | Sinewave | 1 | 5 | -40 to +85 | 25.4 x 25.4 x 8.0 | Gated High Stability |
|
|
| GTCXO2525BF-1160MHz-A | 1160 | Sinewave | 1 | 5 | -40 to +55 | 25.4 x 25.4 x 8.0 | Gated High Stability |
|
|
| TCXO3225BM-1500MHz-A | 1500 | LVPECL | 2 | 3.3 | -10 to +70 | 3.2 x 2.5 x 1.6 | Standard |
|
|
| TCXO3225BM-122.80MHz-A | 122.8 | CMOS | 2.5 | 3.3 | -30 to +85 | 3.2 x 2.5 x 1.6 | Standard |
|
|
| TCXO914BE-200MHz-A-V | 200 | HCMOS | 1 | 3.3 | -10 to +85 | 14.3 x 8.7 x 5.5 | Standard |
|
|
| TCXO914BE-200MHz-A | 200 | HCMOS | 1 | 3.3 | -10 to +85 | 14.3 x 8.7 x 5.5 | Standard |
|
|
| TCXO5300BM-14.85MHz-A-V | 14.85 | Clipped Sinewave | 2.5 | 3.3 | -20 to +70 | 5.0 x 3.2 x 1.1 | Standard |
|
|
| TCXO7501BL-38MHz-A-V | 38 | CMOS | 1 | 3.3 | -40 to +70 | 7.0 x 5.0 x 2.5 | SMD |
|
|
| TCXO7500BT-16.8MHz-A-V | 16.8 | LVCMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | High Precision |
|
|
| TCXO5300BT-HS-10MHz_CS-1432 | 10 | Clipped Sinewave | 0.25 | 3.3 | -20 to +70 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-2432 | 10 | Clipped Sinewave | 0.25 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-1322 | 10 | Clipped Sinewave | 0.2 | 2.8 | -20 to +70 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-2322 | 10 | Clipped Sinewave | 0.2 | 2.8 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-1422 | 10 | Clipped Sinewave | 0.25 | 2.8 | -20 to +70 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-2422 | 10 | Clipped Sinewave | 0.25 | 2.8 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO7500BT-STR3-25MHz-A | 25 | CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | Standard |
|
|
| TCXO7500BM-40MHz-D | 40 | CMOS | 0.28 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | Standard |
|
|

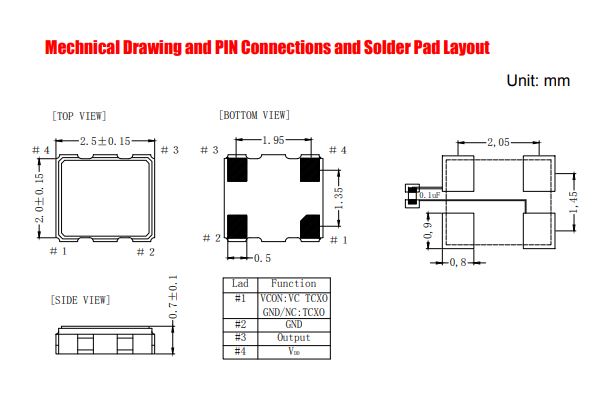

| TCXO2520BM-25MHz-A | 25 | CMOS | 2.5 | 3.3 | -40 to +85 | 2.50 x 2.00 x 0.85 | SMD |
|
|
| TCXO5300BT-25MHz-B-V | 25 | CMOS | 0.5 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.7 | SMD |
|
|
| TCXO5300BT-HS-10MHz_CS-1312 | 10 | Clipped Sinewave | 0.2 | 2.5 | -20 to +70 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-1412 | 10 | Clipped Sinewave | 0.25 | 2.5 | -20 to +70 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-2312 | 10 | Clipped Sinewave | 0.2 | 2.5 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO5300BT-HS-10MHz_CS-2412 | 10 | Clipped Sinewave | 0.25 | 2.5 | -40 to +85 | 5.0 x 3.2 x 1.7 | High Stability |
|
|
| TCXO1314BM-LN-38.4MHz-A-V | 38.4 | CMOS | 0.28 | 3.3 | -40 to +85 | 14.5 x 13.2 x 6.5 | High Stability |
|
|
| TCXO5300BM-STR3 | 5 to 52 | Clipped Sinewave, CMOS | 0.28 | 2.5, 3.3 | -40 to +85 | 5.0 x 3.2 x 1.85 | High Stability |
|
|
| TCXO7500BM-LG | 10 to 52 | Clipped Sinewave, CMOS | 0.28 | 2.5, 3.3 | -40 to +85 | 7.0 x 5.3 x 1.5 | Ultra-low G Sensitivity |
|
|
| TCXO7500BM01-STR3 | 5 to 52 | Clipped Sinewave, CMOS | 0.28 | 2.5, 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Stability |
|
|
| TCXO7500BM02-STR3 | 5 to 52 | Clipped Sinewave, CMOS | 0.28 | 2.5, 3.3 | -40 to +85 | 7.0 x 5.0 x 1.9 | High Stability |
|
|
| TCXO914BM-STR3 | 40 to 150 | CMOS | 4.6 | 3.3 | -40 to +85 | 14.5 x 9.6 x 6.5 | High Stability |
|
|
| TCXO5300BT-59.3MHz-A | 59.3 | CMOS | 1 | 3.3 | -40 to +85 | 5.2 x 3.4 x 1.7 | SMD |
|
|
| TCXO5300BT-59.3MHz-B | 59.3 | Clipped Sinewave | 1 | 3.3 | -40 to +85 | 5.2 x 3.4 x 1.7 | SMD |
|
|
| TCXO914BT-100MHz-B | 100 | Sinewave | 0.5 | 3.3 | -40 to +85 | 14.2 x 9.3 x 6.2 | Low G Sensitivity |
|
|
| TCXO5300AT | 6 to 45 | Clipped Sinewave | 2.5 | 1.8, 2.5, 3.3 | -30 to +75 | 5.0 x 3.2 x 1.05 | High Precision |
|
|
| TCXO7500AT | 10 to 26 | Clipped Sinewave | 2.5 | 1.8, 2.5, 3.3 | -30 to +7 | 7.0 x 5.0 x 1.65 | High Precision |
|
|
| TCXO1612AT | 26 to 52 | Clipped Sinewave | 2 | 1.8, 2.5, 3.3 | -30 to +85 | 1.65 x 1.25 x 0.6 | High Precision |
|
|
| TCXO2016AT | 10 to 52 | Clipped Sinewave | 2 | 1.8, 2.5, 3.3 | -30 to +85 | 2.0 x 1.6 x 0.7 | High Precision |
|
|
| TCXO2520AT | 10 | Clipped Sinewave | 2 | 1.8, 2.5, 3.3 | -30 to +85 | 2.5 x 2.0 x 0.8 | High Precision |
|
|
| TCXO7500BL-10.23MHz-A-V | 10.23 | CMOS | 1.5 | 3.3 | -40 to +85 | 7.0 x 5.0 x 2.5 | Standard |
|
|
| TCXO7500BM-LG-10MHz-A-V | 10 | CMOS | 0.5 | 3.3 | -40 to +85 | 7.0 x 5.3 x 1.5 | Ultra-low G Sensitivity |
|
|
| TCXO3225AT | 10 to 40 | Clipped Sinewave | 2.5 | 1.8, 2.5, 3.3 | -30 to +75 | 3.2 x 2.5 x 0.9 | High Precision |
|
|
| TCXO1811BE_Sine | 6 to 190 | Sinewave | 0.5 | 3.3, 5 | -40 to +85 | 18.3 x 11.7 x 7.0 | Standard |
|
|
| TCXO1811BE_PECL | 0.75 to 800 | PECL | 0.5 | 3.3 | -40 to +85 | 18.3 x 11.7 x 7.0 | Standard |
|
|
| TCXO3225BL-FD-300MHz-A-V | 300 | PECL | 1 | 3.3 | -40 to +85 | 3.2 x 2.5 x 1.6 | Standard |
|
|
| TCXO5300BT-LG-24MHz-A | 24 | CMOS | 0.5 | 3.3 | -40 to +85 | 7 x 3.2 x 1.7 | Standard |
|
|
| TCXO7500BT-CS-26MHz-A-V | 26 | CMOS | 0.2 | 3.3 | -40 to +55 | 7 x 5 x 1.75 | COSPAS SARSAT |
|
|
扫描二维码关注微信公众号
您可以获得：
1.更高效的沟通体验
2.更快捷的报价通知
3.更方便的接询单体验
