| 产品型号 | 规格书 | 产品图片 | 供电电压 (V) |
频率 (MHz) |
输出类型 | 频率稳定度 (ppb) |
工作温度范围 (°C) |
封装尺寸 长 x 宽 x 高 (mm) |
| OCXO2525S |
|
|
5 | 10 | LVTTL | 3, 5, 10 |
-30 to +70 -40 to +85 |
25.4 x 25.4 x 12.7 DIP |

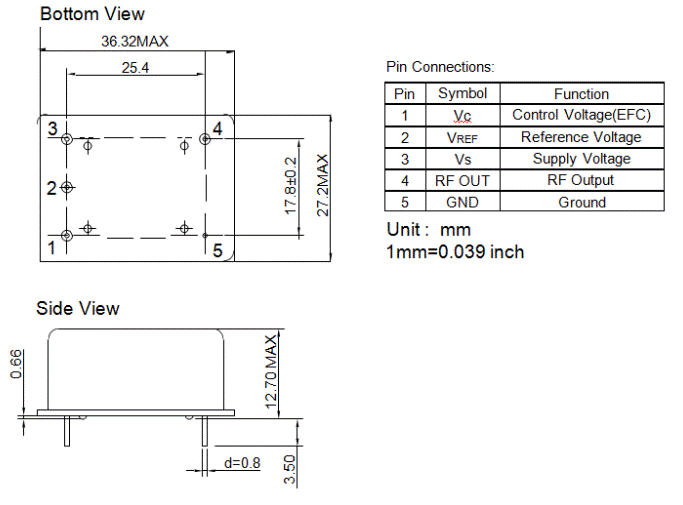

| OCXO3627S |
|
|
12 | 10 | LVTTL | 3, 5, 10 |
-30 to +70 -40 to +85 |
36.3 x 27.2 x 12.7 DIP |

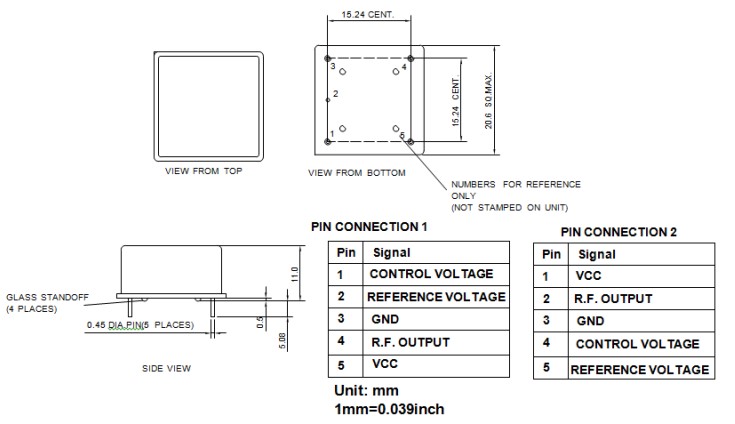

| OCXO2020S |
|
|
3.3, 5 | 10 | HCMOS | 5, 10, 20 |
-30 to +70 -40 to +85 |
20.6 x 20.6 x 11.0 DIP |

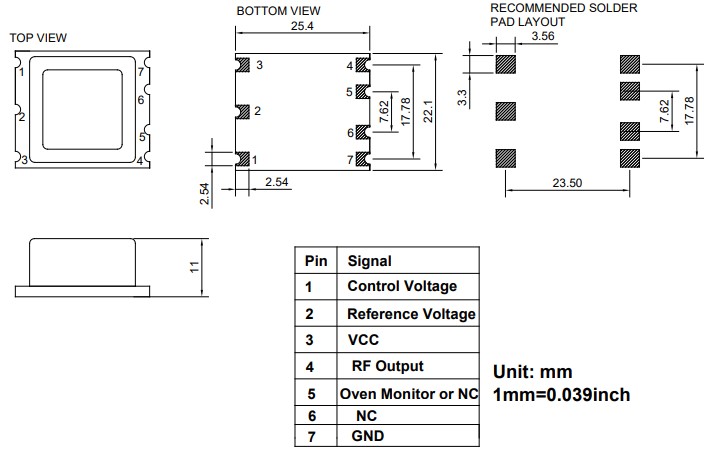

| OCXO2522S |
|
|
3.3, 5 | 10 | HCMOS | 5, 10, 20 |
-30 to +70 -40 to +85 |
25.4 x 22.1 x 11.0 SMD |
| OCXO2020CO-10MHz-A-V |
|
|
3.3 | 10 | Sinewave | ±50 | -20 to +70 | 20.5 x 20.5 x 10.5 DIP |
| OCXO2525AM-104MHz-A-V |
|
|
5 | 104 | Sinewave | ±100 | -40 to +85 | 25.8 x 25.8 x 12.7 DIP |
| OCXO2525AM-10MHz-B-V |
|
|
3.3 | 10 | Sinewave | ±20 | -40 to +85 | 25.8 x 25.8 x 12.7 DIP |
| OCXO3627CO-100MHz-A-V |
|
|
12 | 100 | CMOS | ±100 | -20 to +70 | 36 x 27 x 15 |
| OCXO2525BM-100MHz-A-V |
|
|
5 | 100 | Sinewave | ±200 | -40 to +85 | 25.7 x 25.7 x 12.7 DIP |
| OCXO2525AM-10MHz-C-V |
|
|
5 | 10 | Sinewave | ±50 | -30 to +75 | 25.8 x 25.8 x 10.5 DIP |
| OCXO2013BT-16MHz-A-V |
|
|
5 | 16 | Sinewave | ±200 | -40 to +85 | 20.8 x 13.2 x 7.8 |
