| 产品型号 | 频率 (MHz) |
输出类型 | 频率稳定度 (ppm) |
供电电压 (V) |
工作温度范围 (°C) |
封装尺寸 长 x 宽 x 高 (mm) |
产品类别 | 规格书 | 产品图片 |
| VCXO1490AX | 8-1500 | LVDS/PECL | 50 | 3.3 / 5.0 | -40 to +85 | 14.3 x 8.7 x 5.7 | Low Noise and High Performance |
|
|

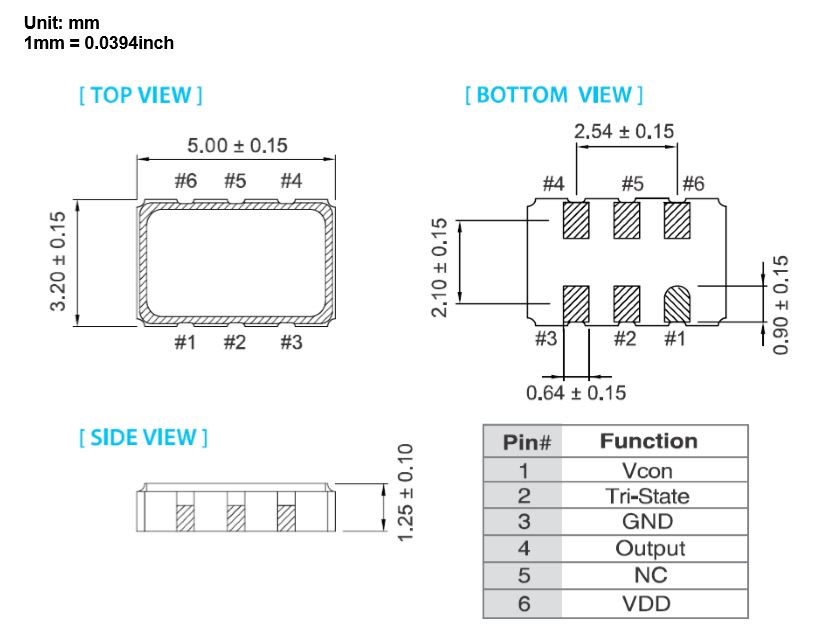

| VCXO5300AX | 10-170 | HCMOS/TTL | 50 | 3.3 / 5.0 | -40 to +85 | 5.0x 3.2 x 1.3 | Low Noise and High Performance |
|
|

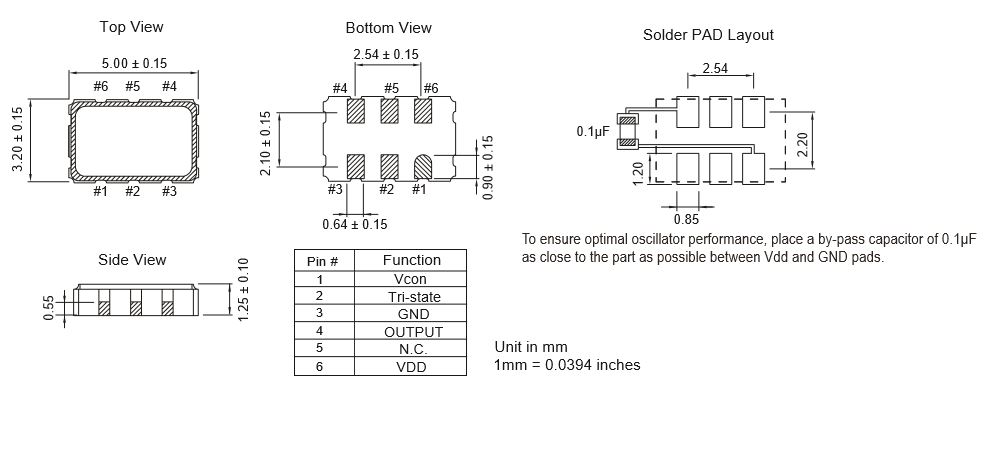

| VCXO5300BM-170MHz-A-V | 170 | CMOS | 25 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.25 | Low Phase Noise |
|
|

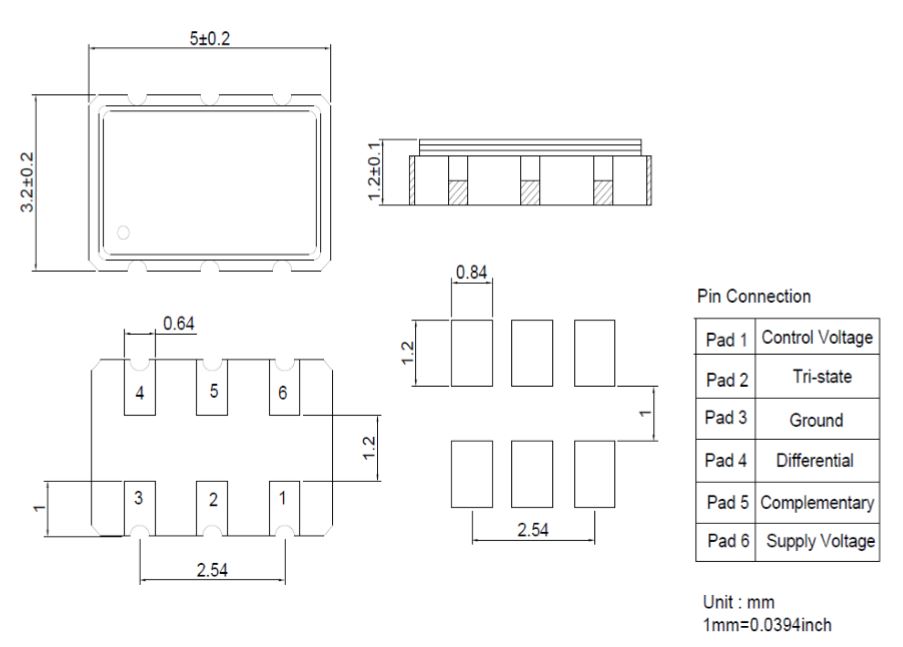

| VCXO5300R-LVDS | 10 to 1450 | LVDS | 50 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.2 | Low Jitter |
|
|

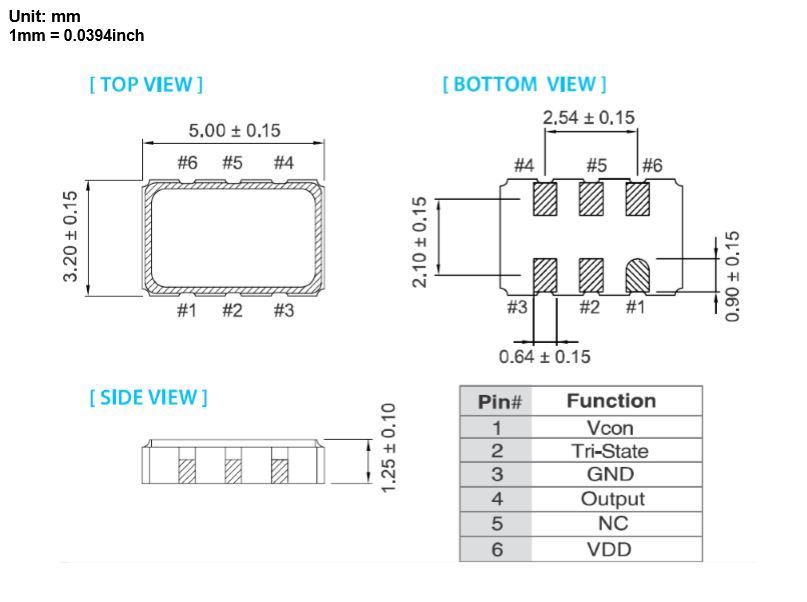

| VCXO5300S-CMOS | 1.5 to 170 | CMOS | 25 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.3 6-pad | Standard |
|
|
| VCXO5300S-LPLV | 20.0 to 175 | LVDS, LVPECL | 25 | 3.3 | -40 to +85 | 5.0 x 3.2 x 1.3 6-pad | Standard |
|
|

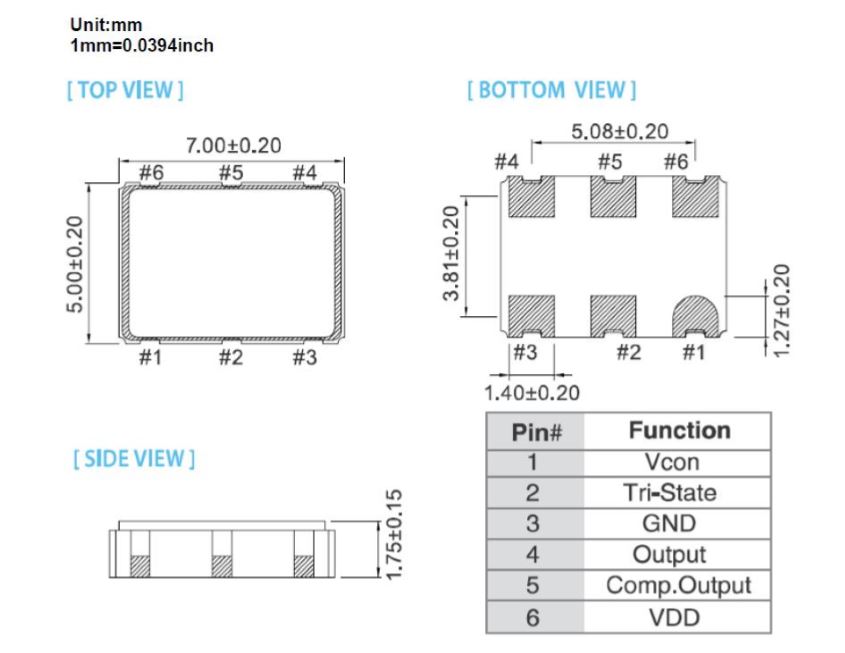

| VCXO7500BL-122.88MHz-A-V | 122.88 | PECEL | 25 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.8 | Low Jitter |
|
|

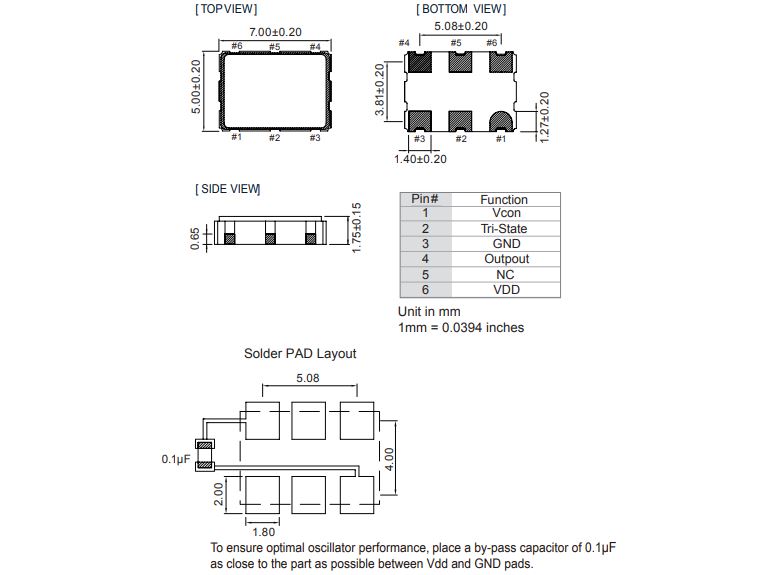

| VCXO7500BM-120MHz-A-V | 120 | CMOS | 50 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.45 | Low Phase Noise |
|
|
| VCXO7500BM-122.88MHz-A-V | 122.88 | CMOS | 50 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.45 | Low Phase Noise |
|
|
| VCXO7500R-LVDS | 10 to 1450 | LVDS | 50 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.8 | Low Jitter |
|
|
| VCXO7500S-LVPECL | 100 to 800 | LVPECL | 25 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.8 | Low Jitter |
|
|
| VCXO7500S_series | 1.5 to 170 | CMOS | 25, 50 | 3.3 | -10 to +85 | 7.0 x 5.0 x 1.75 | SMD |
|
|

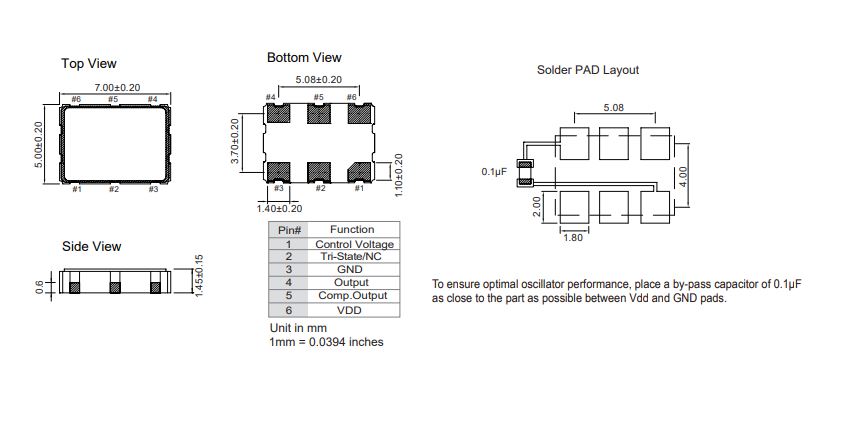

| VCXO7501BM-120MHz-A-V | 120 | CMOS | 30 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.7 | Low Phase Noise |
|
|
| VCXO7501BM-122.88MHz-A-V | 122.88 | CMOS | 30 | 3.3 | -40 to +85 | 7.0 x 5.0 x 1.75 | Low Phase Noise |
|
|
| VCXO914BM-100MHz-B | 100 | Sinewave | 35 | 5 | -40 to +85 | 13.9 x 9.1 x 3.6 | Low Noise |
|
|
| VCXO914BM-122.88MHz-A-V | 122.88 | CMOS | 25 | 3.3 | -20 to +70 | 13.9 x 9.1 x 3.6 | Low Noise |
|
|
