| 产品型号 | 规格书 | 产品图片 | 封装尺寸长 x 宽 x 高(mm) | 负载电容 | 频率范围 | 驱动电平 | 稳定度 | 温度范围 |

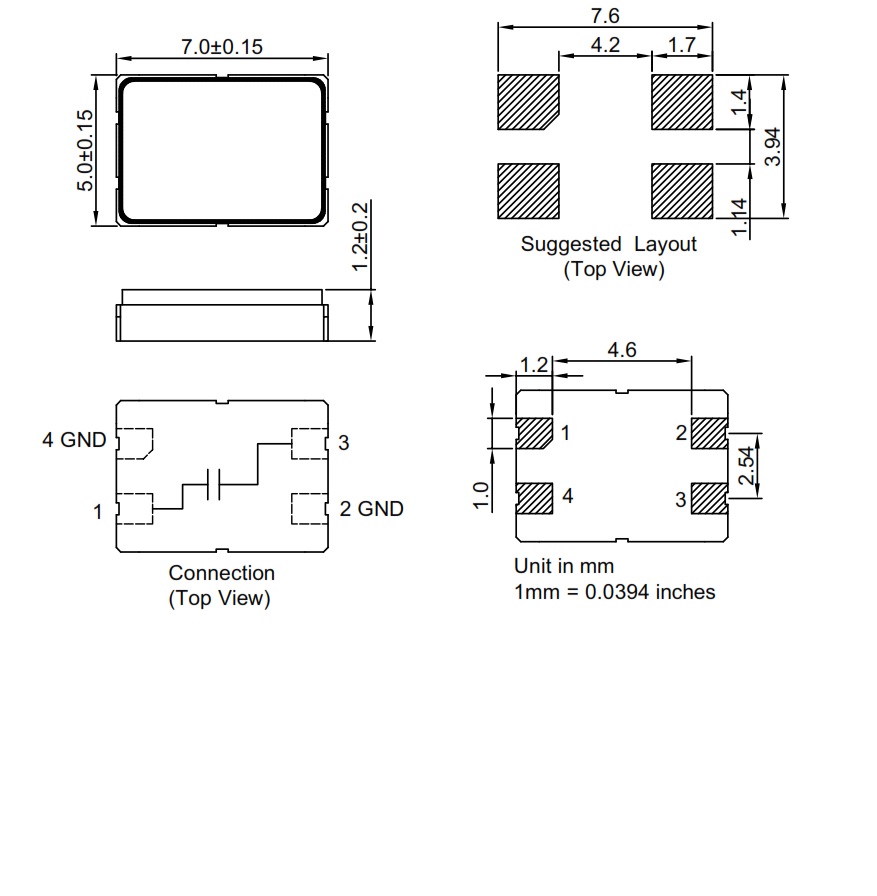

| XTAL7500AL-12.8MHz-A |
|
|
7x5x1.2mm | 8pF | 12.8MHz | 100uW | ±10PPM | -20°C to +70°C |
| XTAL1612AX |
|
|
1.6x1.2x0.35mm | 6-20pF | 24MHz-54MHz | 10-100uW | ±15ppm to ±50ppm | -40°C to +85°C |
| XTAL2520AX |
|
|
2.5x2.0x1.0mm | 6-20pF | 12MHz-60MHz | 10-100uW | ±15ppm to ±50ppm | -40°C to +85°C |
| XTAL5032AX |
|
|
5.0x3.2x1.1mm | 6-20pF | 10MHz-60MHz | 10-200uW | ±15ppm to ±50ppm | -40°C to +85°C |
| XTAL6032AX |
|
|
6.0x3.5x1.2mm | 6-20pF | 8MHz-60MHz | 100uW | ±15ppm to ±50ppm | -40°C to +85°C |
| XTAL7500AX |
|
|
7x5x1.3mm | 6-20pF | 5.5MHz-60MHz | 100uW | ±15ppm to ±50ppm | -40°C to +85°C |
| XTAL2016AX |
|
|
2.05x1.65x0.6mm | 6-20pF | 16MHz-60MHz | 10-100uW | ±15ppm to ±50ppm | -40°C to +85°C |

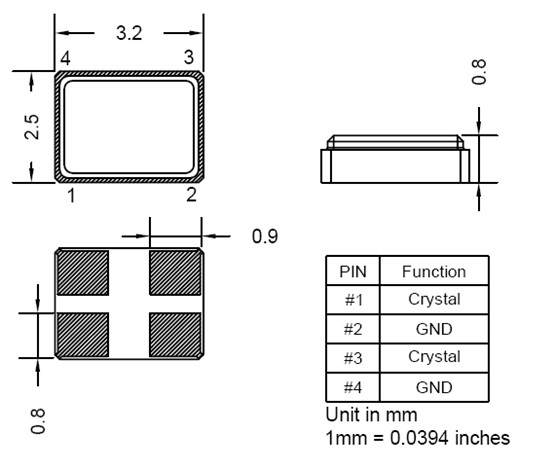

| XTAL3225AX |
|
|
3.2x2.5x0.8mm | 6-20pF | 10MHz-60MHz | 10-100uW | ±15ppm to ±50ppm | -40°C to +85°C |
| XTAL6035AX |
|
|
6.0x3.5x1.2mm | 6-20pF | 8MHz-60MHz | 100uW | ±15ppm to ±50ppm | -40°C to +85°C |

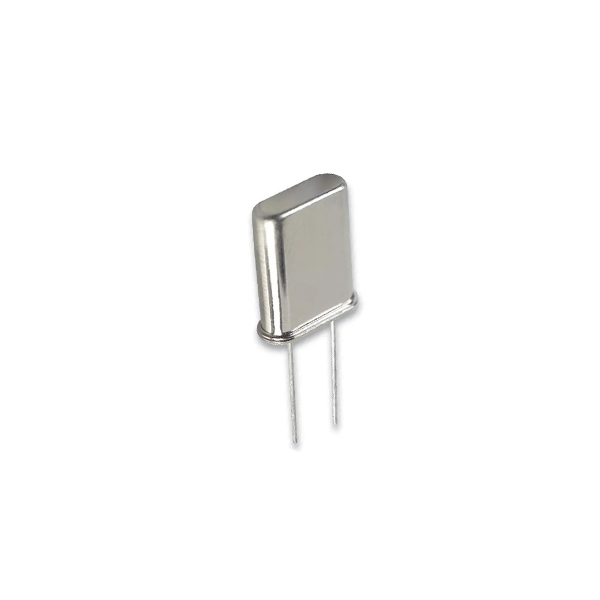

| XTALHC49UAX |
|
|
11.5x5x13.46mm | 6-20pF | 1.536MHz-60MHz | 100uW | ±15ppm to ±50ppm | -40°C to +85°C |
| XTAL1612CU-40MHz-A |
|
|
1.6x1.2x0.35mm | 9.0pF | 40MHz | 100uW | ±10ppm | -30°C to +85°C |
| XTAL7500BE |
|
|
7x5x1.3mm | 8-30pF | 6MHz-160MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL6035BE |
|
|
6x3.5x1.2mm | 8-30pF | 8MHz-48MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL5032BE |
|
|
5x3.2x1mm | 8-30pF | 8MHz-133MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL3225BE |
|
|
5x3.2x1mm | 8-30pF | 8MHz-133MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL2520BE |
|
|
2.55x2.05x0.65mm | 8-30pF | 16MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |

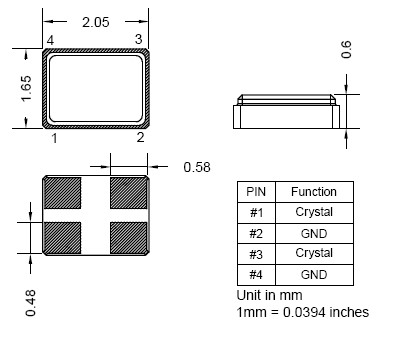

| XTAL2016BE |
|
|
2.05x1.65x0.55mm | 8-30pF | 16MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL1612BE |
|
|
1.65x1.25x0.4mm | 8-30pF | 24MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL7500BE-12 |
|
|
7x5x1.3mm | 10pF | 6MHz-160MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL7500BE-11 |
|
|
7x5x1.3mm | 8pF | 6MHz-160MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL7500BE-13 |
|
|
7x5x1.3mm | 18pF | 6MHz-160MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL7500BE-14 |
|
|
7x5x1.3mm | 30pF | 6MHz-160MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL7500BE-21 |
|
|
7x5x1.3mm | 8pF | 6MHz-160MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL7500BE-22 |
|
|
7x5x1.3mm | 10pF | 6MHz-160MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL7500BE-23 |
|
|
7x5x1.3mm | 18pF | 6MHz-160MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL7500BE-24 |
|
|
7x5x1.3mm | 30pF | 6MHz-160MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL7500BE-31 |
|
|
7x5x1.3mm | 8pF | 6MHz-160MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTALHC25USBE |
|
|
12.8x3.8x3.2mm | 8-30pF | 3.579MHz-75MHz | 1mW | ±5ppm | -40°C to +80°C |
| XTALHC49USBE |
|
|
12.8x3.8x3.2mm | 8-30pF | 3.579MHz-75MHz | 1mW | ±5ppm | -40°C to +80°C |
| XTAL7500BE-32 |
|
|
7x5x1.3mm | 10pF | 6MHz-160MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL7500BE-33 |
|
|
7x5x1.3mm | 18pF | 6MHz-160MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL7500BE-34 |
|
|
7x5x1.3mm | 30pF | 6MHz-160MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL7500BE-41 |
|
|
7x5x1.3mm | 8pF | 6MHz-160MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL7500BE-42 |
|
|
7x5x1.3mm | 10pF | 6MHz-160MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL7500BE-43 |
|
|
7x5x1.3mm | 18pF | 6MHz-160MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL7500BE-44 |
|
|
7x5x1.3mm | 30pF | 6MHz-160MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL7500BE-51 |
|
|
7x5x1.3mm | 8pF | 6MHz-160MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL7500BE-52 |
|
|
7x5x1.3mm | 10pF | 6MHz-160MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL7500BE-53 |
|
|
7x5x1.3mm | 18pF | 6MHz-160MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL7500BE-54 |
|
|
7x5x1.3mm | 30pF | 6MHz-160MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL6035BE-11 |
|
|
6x3.5x1.2mm | 8pF | 8MHz-48MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL6035BE-12 |
|
|
6x3.5x1.2mm | 10pF | 8MHz-48MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL6035BE-14 |
|
|
6x3.5x1.2mm | 30pF | 8MHz-48MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL6035BE-13 |
|
|
6x3.5x1.2mm | 18pF | 8MHz-48MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL6035BE-21 |
|
|
6x3.5x1.2mm | 8pF | 8MHz-48MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL6035BE-22 |
|
|
6x3.5x1.2mm | 10pF | 8MHz-48MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL6035BE-23 |
|
|
6x3.5x1.2mm | 18pF | 8MHz-48MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL6035BE-24 |
|
|
6x3.5x1.2mm | 30pF | 8MHz-48MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL6035BE-31 |
|
|
6x3.5x1.2mm | 8pF | 8MHz-48MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL6035BE-32 |
|
|
6x3.5x1.2mm | 10pF | 8MHz-48MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL6035BE-33 |
|
|
6x3.5x1.2mm | 18pF | 8MHz-48MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL6035BE-34 |
|
|
6x3.5x1.2mm | 30pF | 8MHz-48MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL6035BE-41 |
|
|
6x3.5x1.2mm | 8pF | 8MHz-48MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL6035BE-42 |
|
|
6x3.5x1.2mm | 10pF | 8MHz-48MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL6035BE-43 |
|
|
6x3.5x1.2mm | 18pF | 8MHz-48MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL6035BE-44 |
|
|
6x3.5x1.2mm | 30pF | 8MHz-48MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL6035BE-51 |
|
|
6x3.5x1.2mm | 8pF | 8MHz-48MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL6035BE-52 |
|
|
6x3.5x1.2mm | 10pF | 8MHz-48MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL6035BE-53 |
|
|
6x3.5x1.2mm | 18pF | 8MHz-48MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL6035BE-54 |
|
|
6x3.5x1.2mm | 30pF | 8MHz-48MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL5032BE-11 |
|
|
5x3.2x1mm | 8pF | 8MHz-133MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL5032BE-14 |
|
|
5x3.2x1mm | 30pF | 8MHz-133MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL5032BE-13 |
|
|
5x3.2x1mm | 18pF | 8MHz-133MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL5032BE-12 |
|
|
5x3.2x1mm | 10pF | 8MHz-133MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL5032BE-21 |
|
|
5x3.2x1mm | 8pF | 8MHz-133MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL5032BE-22 |
|
|
5x3.2x1mm | 10pF | 8MHz-133MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL5032BE-23 |
|
|
5x3.2x1mm | 18pF | 8MHz-133MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL5032BE-24 |
|
|
5x3.2x1mm | 30pF | 8MHz-133MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL5032BE-31 |
|
|
5x3.2x1mm | 8pF | 8MHz-133MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL5032BE-32 |
|
|
5x3.2x1mm | 10pF | 8MHz-133MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL5032BE-33 |
|
|
5x3.2x1mm | 18pF | 8MHz-133MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL5032BE-34 |
|
|
5x3.2x1mm | 30pF | 8MHz-133MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL5032BE-41 |
|
|
5x3.2x1mm | 8pF | 8MHz-133MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL5032BE-42 |
|
|
5x3.2x1mm | 10pF | 8MHz-133MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL5032BE-43 |
|
|
5x3.2x1mm | 18pF | 8MHz-133MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL5032BE-44 |
|
|
5x3.2x1mm | 30pF | 8MHz-133MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL5032BE-51 |
|
|
5x3.2x1mm | 8pF | 8MHz-133MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL5032BE-52 |
|
|
5x3.2x1mm | 10pF | 8MHz-133MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL5032BE-53 |
|
|
5x3.2x1mm | 18pF | 8MHz-133MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL5032BE-54 |
|
|
5x3.2x1mm | 30pF | 8MHz-133MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL3225BE-11 |
|
|
3.2x2.5x0.7mm | 8pF | 8MHz-285MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL3225BE-12 |
|
|
3.2x2.5x0.7mm | 10pF | 8MHz-285MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL3225BE-13 |
|
|
3.2x2.5x0.7mm | 18pF | 8MHz-285MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL3225BE-14 |
|
|
3.2x2.5x0.7mm | 30pF | 8MHz-285MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL3225BE-21 |
|
|
3.2x2.5x0.7mm | 8pF | 8MHz-285MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL3225BE-22 |
|
|
3.2x2.5x0.7mm | 10pF | 8MHz-285MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL3225BE-23 |
|
|
3.2x2.5x0.7mm | 18pF | 8MHz-285MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL3225BE-24 |
|
|
3.2x2.5x0.7mm | 30pF | 8MHz-285MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL3225BE-31 |
|
|
3.2x2.5x0.7mm | 8pF | 8MHz-285MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL3225BE-32 |
|
|
3.2x2.5x0.7mm | 10pF | 8MHz-285MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL3225BE-33 |
|
|
3.2x2.5x0.7mm | 18pF | 8MHz-285MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL3225BE-34 |
|
|
3.2x2.5x0.7mm | 30pF | 8MHz-285MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL3225BE-41 |
|
|
3.2x2.5x0.7mm | 8pF | 8MHz-285MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL3225BE-42 |
|
|
3.2x2.5x0.7mm | 10pF | 8MHz-285MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL3225BE-43 |
|
|
3.2x2.5x0.7mm | 18pF | 8MHz-285MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL3225BE-44 |
|
|
3.2x2.5x0.7mm | 30pF | 8MHz-285MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL3225BE-51 |
|
|
3.2x2.5x0.7mm | 8pF | 8MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL3225BE-52 |
|
|
3.2x2.5x0.7mm | 10pF | 8MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL3225BE-53 |
|
|
3.2x2.5x0.7mm | 18pF | 8MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL3225BE-54 |
|
|
3.2x2.5x0.7mm | 30pF | 8MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL2520BE-11 |
|
|
2.55x2.05x0.65mm | 8pF | 16MHz-285MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL2520BE-12 |
|
|
2.55x2.05x0.65mm | 10pF | 16MHz-285MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL2520BE-13 |
|
|
2.55x2.05x0.65mm | 18pF | 16MHz-285MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL2520BE-14 |
|
|
2.55x2.05x0.65mm | 30pF | 16MHz-285MHz | 200uW | ±30ppm | 0°C to +50°C |
| XTAL2520BE-21 |
|
|
2.55x2.05x0.65mm | 8pF | 16MHz-285MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL2520BE-22 |
|
|
2.55x2.05x0.65mm | 10pF | 16MHz-285MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL2520BE-23 |
|
|
2.55x2.05x0.65mm | 18pF | 16MHz-285MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL2520BE-24 |
|
|
2.55x2.05x0.65mm | 30pF | 16MHz-285MHz | 200uW | ±30ppm | -10°C to +60°C |
| XTAL2520BE-31 |
|
|
2.55x2.05x0.65mm | 8pF | 16MHz-285MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL2520BE-32 |
|
|
2.55x2.05x0.65mm | 10pF | 16MHz-285MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL2520BE-34 |
|
|
2.55x2.05x0.65mm | 30pF | 16MHz-285MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL2520BE-33 |
|
|
2.55x2.05x0.65mm | 18pF | 16MHz-285MHz | 200uW | ±30ppm | -20°C to +70°C |
| XTAL2520BE-41 |
|
|
2.55x2.05x0.65mm | 8pF | 16MHz-285MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL2520BE-42 |
|
|
2.55x2.05x0.65mm | 10pF | 16MHz-285MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL2520BE-43 |
|
|
2.55x2.05x0.65mm | 18pF | 16MHz-285MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL2520BE-44 |
|
|
2.55x2.05x0.65mm | 30pF | 16MHz-285MHz | 200uW | ±30ppm | -30°C to +75°C |
| XTAL1210BM |
|
|
1.2x1.0x0.35mm | 3pF | 32MHz-80MHz | 200uW | ±5ppm | -40°C to +125°C |
| XTAL1612BM |
|
|
1.65x1.25x0.3mm | 3pF | 24MHz-54MHz | 200uW | ±5ppm | -40°C to +125°C |
| XTAL2520BE-51 |
|
|
2.55x2.05x0.65mm | 8pF | 16MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL2520BE-52 |
|
|
2.55x2.05x0.65mm | 10pF | 16MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL2520BE-53 |
|
|
2.55x2.05x0.65mm | 18pF | 16MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL2520BE-54 |
|
|
2.55x2.05x0.65mm | 30pF | 16MHz-285MHz | 200uW | ±30ppm | -40°C to +80°C |
| XTAL2016BM |
|
|
2.05x1.65x0.45mm | / | 16MHz-60MHz | 200uW | ±5ppm | -40°C to +125°C |
| XTAL5300BM |
|
|
5x3.2x0.8mm | / | 8MHz-80MHz | 300uW | ±5ppm | -40°C to +125°C |
